Automatic Counting & Sachet Packaging for Candies, Pills, Tablets & Capsules

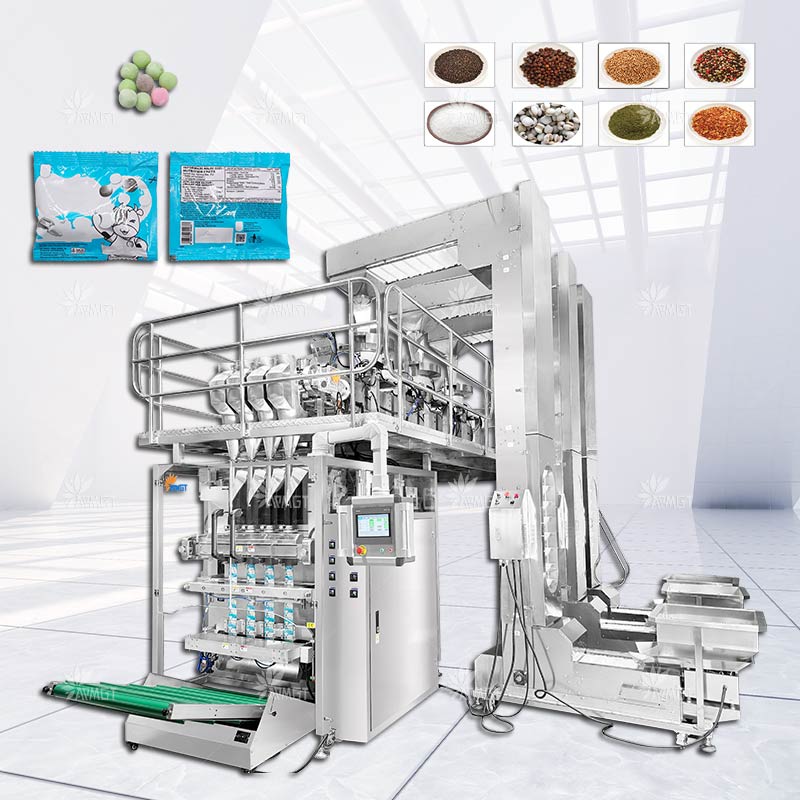

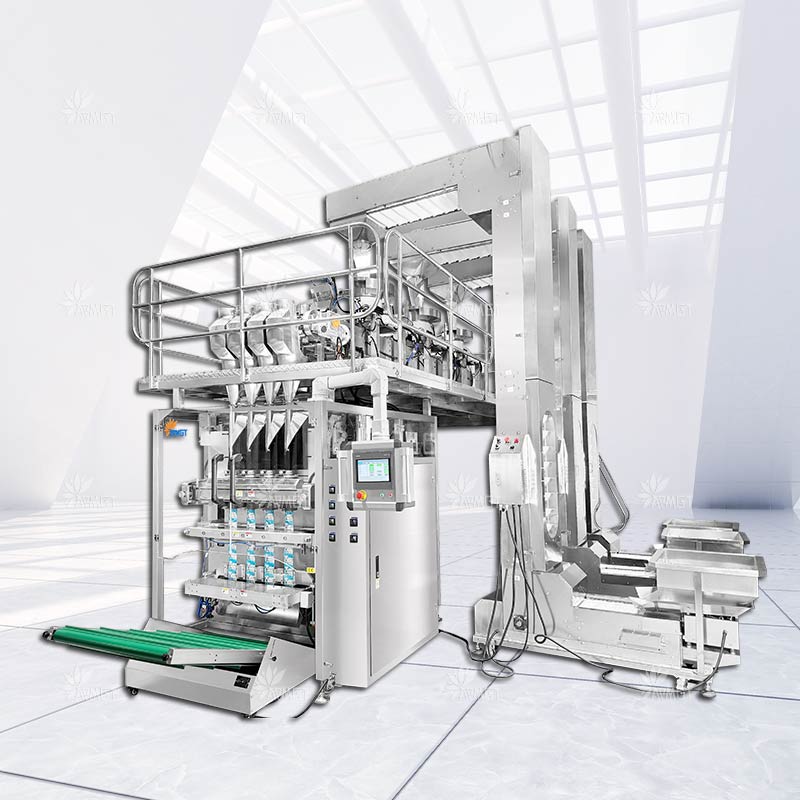

The GH840K-4 is a fully automatic three-side seal counting and packaging machine designed for small solid products. It combines multi-lane packaging with a dedicated counting system to automatically count, fill, and seal products into individual sachets. The machine is particularly suitable for mixed-flavor candy packs, pill and tablet combination packs, nutrient combination packs, and counted granule sachets.
GH840K at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.840mm |
|
Lane Number |
4–12 |
|
Max. Speed |
Up to 50 cycles/min |
|
Bag Length & Width |
50–180 mm,25–105 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |
Automatic Counting & Sachet Packaging for Candies, Pills, Tablets & Capsules
The GH840K-4 is a fully automatic three-side seal counting and packaging machine designed for small solid products. It combines multi-lane packaging with a dedicated counting system to automatically count, fill, and seal products into individual sachets. The machine is particularly suitable for mixed-flavor candy packs, pill and tablet combination packs, nutrient combination packs, and counted granule sachets.
GH840K at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.840mm |
|
Lane Number |
4–12 |
|
Max. Speed |
Up to 50 cycles/min |
|
Bag Length & Width |
50–180 mm,25–105 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |

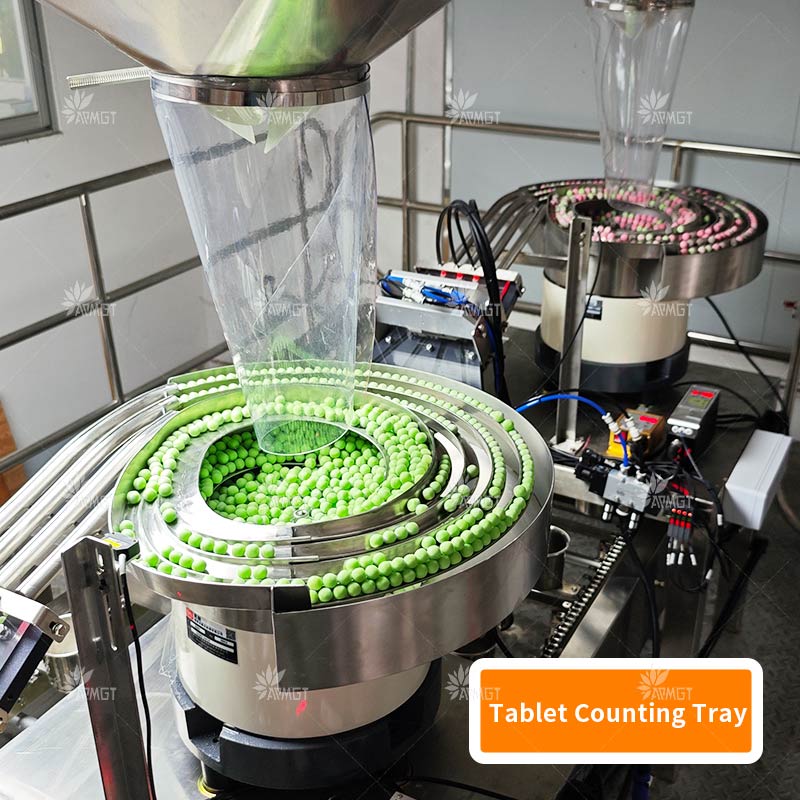

Four individually controlled vibratory counting channels can simultaneously handle candies or pills of different colors, flavors, or types, counting them accurately into one sachet to create innovative mix packs.
Running at up to 50 cuts per minute, the machine forms flat, attractive 3 side seal sachets with excellent moisture and oxygen barrier properties, prolonging shelf life.
The process is fully continuous—from Z-elevator loading, chain bucket distribution, and vibratory counting to sachet forming, filling, sealing, cutting, and conveying, significantly reducing manual handling.
The PLC with color touchscreen stores multiple packaging recipes; operators can recall settings for bag length, count quantity, and sealing temperature with one touch, ideal for multi-SKU short-run production.
The intuitive touchscreen displays production data, counting status, and fault alerts, making operation straightforward and reducing dependence on highly skilled labor.
The main structure is made of stainless steel 304, with sloped surfaces for easy cleaning. A safety platform with ladder and guardrails provides ergonomic access for operation and maintenance.
Counting units, sealing jaws, and cutting assemblies are quickly removable for cleaning and maintenance. Extra modules like checkweighing, vision inspection, or metal detection can be seamlessly integrated.
Model | GH840K |
Lane number | 4-16 lanes (can be customized according to needs) |
Filling Method | Four-outlet Tablet Counting Tray |
Capacity | Max.50 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L50-180mm;W25-105mm |
Film width&thickness | Max.840mm; 0.07-0.10mm |
Sealing type | 3 SIDE SEALING |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cut |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |
The GH840K sachet counting & packaging machine produces three-side seal sachets for individually counted or mixed small solid products.
The GH840K is designed for counted and combination packaging of small solid products, including:
Food Products
Pharmaceuticals and Health Products
Suitable for other small solid products that require accurate counting, portioning, or mixed-product packaging.
Optional features can be configured according to product and packaging requirements.
Optional Feature | Function |
Automatic Film Correction | Maintains stable film positioning |
No-Film Alarm | Detects film shortage or interruption |
Light Strip | Improves operation visibility |
UV Sterilization | Optional UV sterilization |
Static Elimination | Reduces static during film feeding |
Vibrating Material Discharge | Improves material discharge |
Tear Notch | Facilitates package opening |
Check Weighing | Single- or multi-lane weight checking |
Four individually controlled vibratory counting channels can simultaneously handle candies or pills of different colors, flavors, or types, counting them accurately into one sachet to create innovative mix packs.
Running at up to 50 cuts per minute, the machine forms flat, attractive 3 side seal sachets with excellent moisture and oxygen barrier properties, prolonging shelf life.
The process is fully continuous—from Z-elevator loading, chain bucket distribution, and vibratory counting to sachet forming, filling, sealing, cutting, and conveying, significantly reducing manual handling.
The PLC with color touchscreen stores multiple packaging recipes; operators can recall settings for bag length, count quantity, and sealing temperature with one touch, ideal for multi-SKU short-run production.
The intuitive touchscreen displays production data, counting status, and fault alerts, making operation straightforward and reducing dependence on highly skilled labor.
The main structure is made of stainless steel 304, with sloped surfaces for easy cleaning. A safety platform with ladder and guardrails provides ergonomic access for operation and maintenance.
Counting units, sealing jaws, and cutting assemblies are quickly removable for cleaning and maintenance. Extra modules like checkweighing, vision inspection, or metal detection can be seamlessly integrated.
Model | GH840K |
Lane number | 4-16 lanes (can be customized according to needs) |
Filling Method | Four-outlet Tablet Counting Tray |
Capacity | Max.50 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L50-180mm;W25-105mm |
Film width&thickness | Max.840mm; 0.07-0.10mm |
Sealing type | 3 SIDE SEALING |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cut |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |
The GH840K sachet counting & packaging machine produces three-side seal sachets for individually counted or mixed small solid products.
The GH840K is designed for counted and combination packaging of small solid products, including:
Food Products
Pharmaceuticals and Health Products
Suitable for other small solid products that require accurate counting, portioning, or mixed-product packaging.
Optional features can be configured according to product and packaging requirements.
Optional Feature | Function |
Automatic Film Correction | Maintains stable film positioning |
No-Film Alarm | Detects film shortage or interruption |
Light Strip | Improves operation visibility |
UV Sterilization | Optional UV sterilization |
Static Elimination | Reduces static during film feeding |
Vibrating Material Discharge | Improves material discharge |
Tear Notch | Facilitates package opening |
Check Weighing | Single- or multi-lane weight checking |
