Capacity： Max.80 cycles/min
Bag size：L45-160mm；W30-120mm

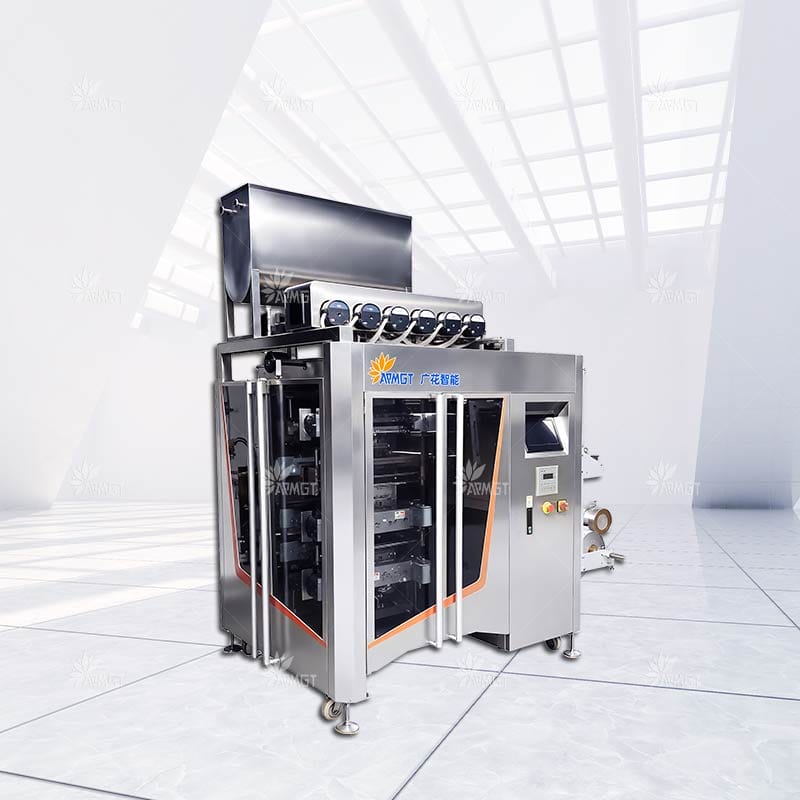

The GH960S-Y series vertical 4-side sealing liquid sachet packaging machine is engineered for liquid, sauce, and paste products, particularly suited for precision packaging in food and daily chemical industries.
From four-sided sealed pouches for condiments like ketchup and chili paste to automated packaging of liquid hygiene products such as shampoo and hand soap, this equipment delivers efficient performance.
Utilizing composite film materials and servo-driven technology, we offer tailored solutions for diverse packaging needs across industries.
Capacity： Max.80 cycles/min
Bag size：L45-160mm；W30-120mm
The GH960S-Y series vertical 4-side sealing liquid sachet packaging machine is engineered for liquid, sauce, and paste products, particularly suited for precision packaging in food and daily chemical industries.
From four-sided sealed pouches for condiments like ketchup and chili paste to automated packaging of liquid hygiene products such as shampoo and hand soap, this equipment delivers efficient performance.
Utilizing composite film materials and servo-driven technology, we offer tailored solutions for diverse packaging needs across industries.
Equipped with full servo control, the machine optimizes four-side sealing processes for seamless coordination of pouch forming, filling, and cutting. Servo-driven mechanisms adapt to varying film tensions, minimizing material waste, especially for leak-prone sauces and high-viscosity pastes.
The gradient temperature-controlled sealing system adjusts pressure and heat based on film properties, achieving smooth, wrinkle-free seals. Non-stick coated sealing jaws prevent adhesion of sticky substances (e.g., jam, hair conditioner), ensuring uninterrupted production.
Designed for operational efficiency:
Customizable integration with upstream feeding and downstream box and case-packing systems. ISO-standard interfaces simplify future automation upgrades.
Model | GH960S-Y |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Piston Pump; Servo Gear Pump; Servo Rotary Pump |
Capacity | Max.80 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L45-160mm;W30-120mm |
Film width&thickness | Max.960mm; 0.07-0.12mm |
Sealing type | 4 Side Sealing |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cutting |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |

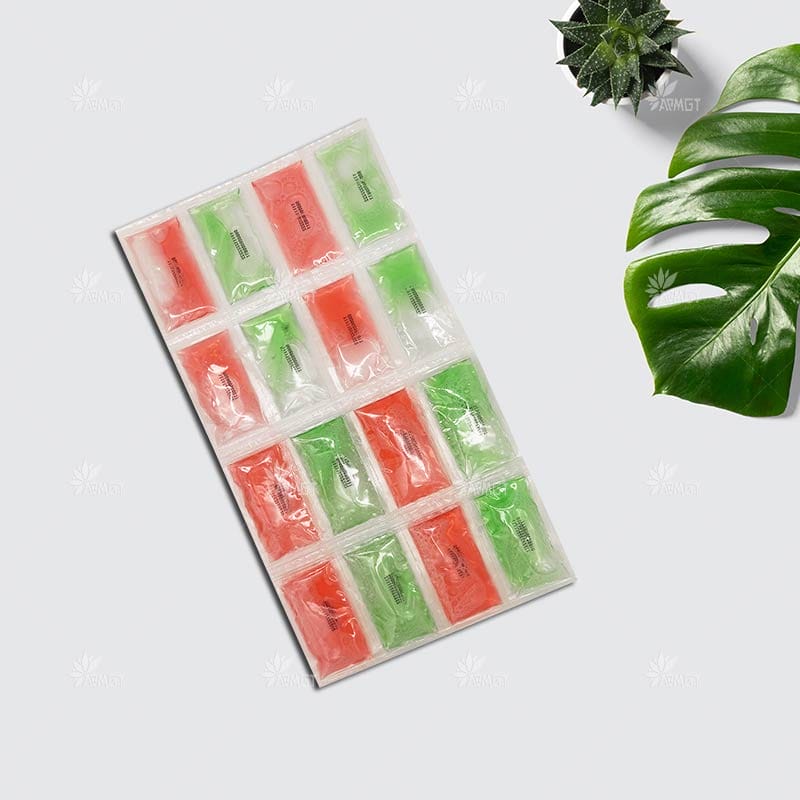

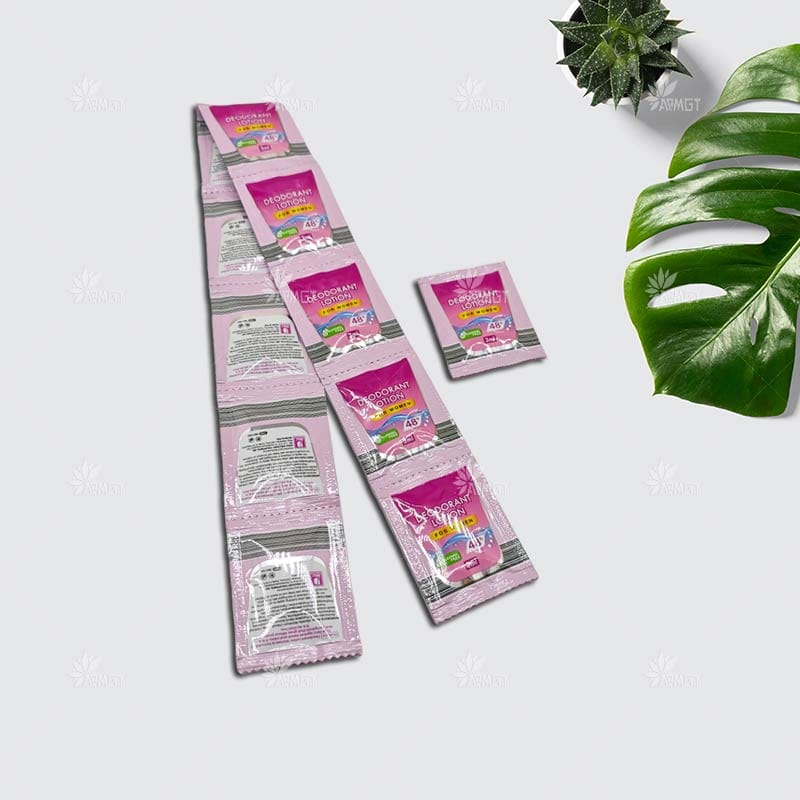

Shampoo, Conditioner, Hair mask Ketchup, Sauce, Oil
Skincare products, Mouthwash Drink, Jelly
-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash, etc.
Equipped with full servo control, the machine optimizes four-side sealing processes for seamless coordination of pouch forming, filling, and cutting. Servo-driven mechanisms adapt to varying film tensions, minimizing material waste, especially for leak-prone sauces and high-viscosity pastes.
The gradient temperature-controlled sealing system adjusts pressure and heat based on film properties, achieving smooth, wrinkle-free seals. Non-stick coated sealing jaws prevent adhesion of sticky substances (e.g., jam, hair conditioner), ensuring uninterrupted production.
Designed for operational efficiency:
Customizable integration with upstream feeding and downstream box and case-packing systems. ISO-standard interfaces simplify future automation upgrades.
Model | GH960S-Y |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Piston Pump; Servo Gear Pump; Servo Rotary Pump |
Capacity | Max.80 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L45-160mm;W30-120mm |
Film width&thickness | Max.960mm; 0.07-0.12mm |
Sealing type | 4 Side Sealing |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cutting |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |
Shampoo, Conditioner, Hair mask Ketchup, Sauce, Oil
Skincare products, Mouthwash Drink, Jelly
-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash, etc.
