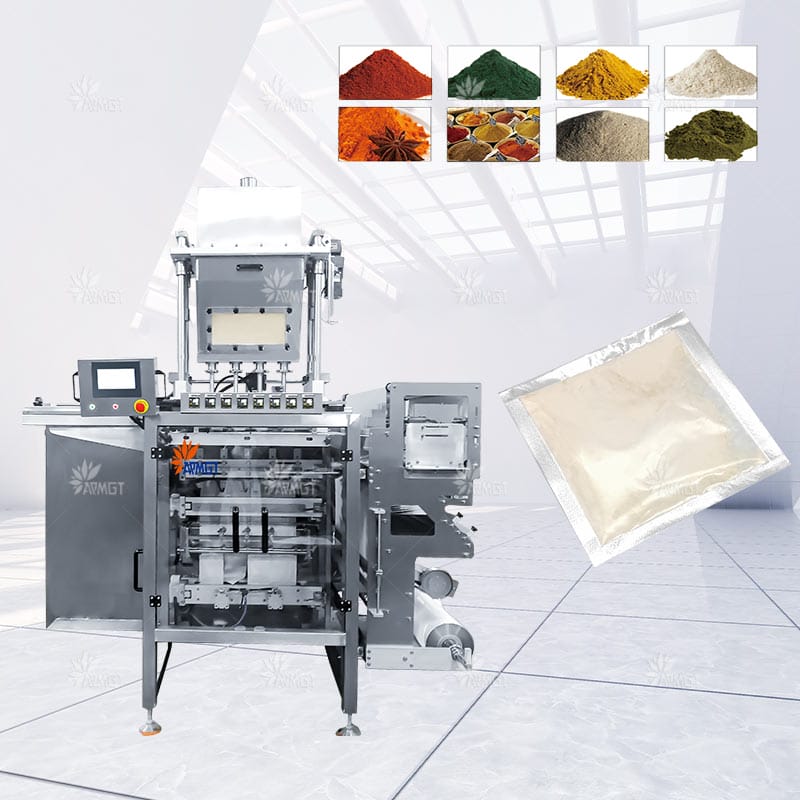

GH1200F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:45-120mm;W:50-120mm
Delivery date:30-45 days

GH1200F is suitable for large-scale production in the chemical, food, and other industries. It is suitable for most powder materials with the functions of weighing filling and bag making. At the same time, it replaces manual filling with automatic filling lines, greatly improves production efficiency, reduces the chance of personal contacting materials, ensures filling accuracy, and avoids accidents.

GH1200F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:45-120mm;W:50-120mm
Delivery date:30-45 days

GH1200F is suitable for large-scale production in the chemical, food, and other industries. It is suitable for most powder materials with the functions of weighing filling and bag making. At the same time, it replaces manual filling with automatic filling lines, greatly improves production efficiency, reduces the chance of personal contacting materials, ensures filling accuracy, and avoids accidents.

  • The filling weight is adjusted, the contact parts of the machine are stainless steel material. It is safe and meets with the GMP standard;
  • High precision temperature control system, the seal is more sturdy and beautiful;
  • High packaging accuracy and easy cleaning;
  • It is a simple operation, holding a small space and easy moving.
  • PLC with touch screen interface, enables bag parameter setting much more convenient and faster;
  • High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy;
  • Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting;
  • Suitable for various packing materials. Such as aluminum film, paper film, PE film, water-soluble film, and composite film.
  • Matching color touch screen, easy operation, and multiple languages for choice.

Model

GH1200F

Lane number

5-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • The filling weight is adjusted, the contact parts of the machine are stainless steel material. It is safe and meets with the GMP standard;
  • High precision temperature control system, the seal is more sturdy and beautiful;
  • High packaging accuracy and easy cleaning;
  • It is a simple operation, holding a small space and easy moving.
  • PLC with touch screen interface, enables bag parameter setting much more convenient and faster;
  • High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy;
  • Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting;
  • Suitable for various packing materials. Such as aluminum film, paper film, PE film, water-soluble film, and composite film.
  • Matching color touch screen, easy operation, and multiple languages for choice.

Model

GH1200F

Lane number

5-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
