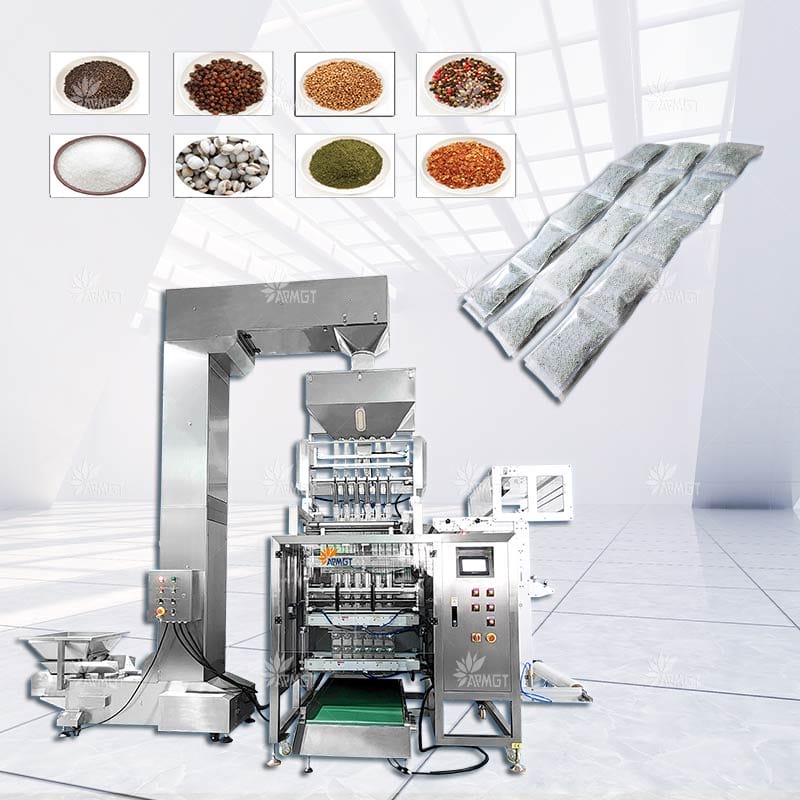

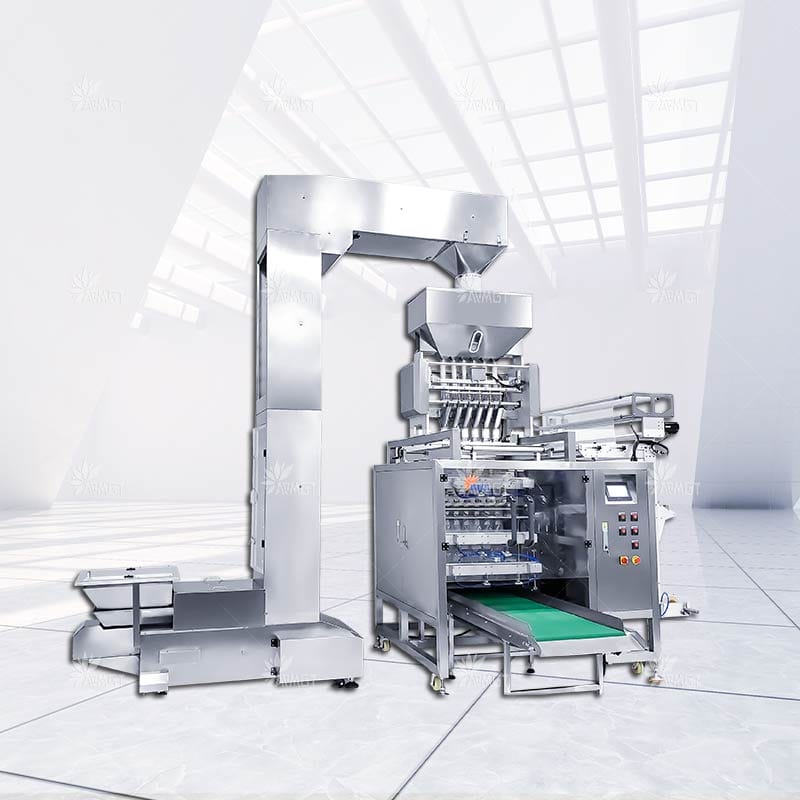

GH1200K Multi Lane 4 Side Sealing Sachet Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:45-120mm;W:40-120mm
Delivery date:30-45 days

GH1200K, the automatic granule filling machine (4 Side Sealing Sachet Granule Packing Machine) has a compact design, beautiful appearance, and wide application field, and it worked with famous brand parts so that the packaging machine has a good performance. It integrates bag-making, filling, sealing, cutting, and counting can be achieved automatically and straightly.

GH1200K Multi Lane 4 Side Sealing Sachet Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:45-120mm;W:40-120mm
Delivery date:30-45 days

GH1200K, the automatic granule filling machine (4 Side Sealing Sachet Granule Packing Machine) has a compact design, beautiful appearance, and wide application field, and it worked with famous brand parts so that the packaging machine has a good performance. It integrates bag-making, filling, sealing, cutting, and counting can be achieved automatically and straightly.

  • Equipped with servo motor and optical tracking devices to keep high accuracy;
  • Automatic level sensor has when lacking material, saving, increasing  and ensuring  stable working the functions;
  • Bag-making equipment can be changed according to the specific requirements of customers and products so as to adjust the amount of packaging.
  • The frame of the machine is made of stainless steel, equipped with auto-stop protection function when opening the door;
  • Advanced PLC control system, user-friendly touch screen control interface provides simple operation and quick parameter setting to adjust packaging parameters;
  • The shape is exquisite and beautiful, the overall structure is strong, and the use is more lightweight and flexible;
  • Using a servo control system, the machine will stop automatically when there is no roll film bag making during operation.

Model

GH1200K

Lane number

5-14

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:40-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

 4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Equipped with servo motor and optical tracking devices to keep high accuracy;
  • Automatic level sensor has when lacking material, saving, increasing  and ensuring  stable working the functions;
  • Bag-making equipment can be changed according to the specific requirements of customers and products so as to adjust the amount of packaging.
  • The frame of the machine is made of stainless steel, equipped with auto-stop protection function when opening the door;
  • Advanced PLC control system, user-friendly touch screen control interface provides simple operation and quick parameter setting to adjust packaging parameters;
  • The shape is exquisite and beautiful, the overall structure is strong, and the use is more lightweight and flexible;
  • Using a servo control system, the machine will stop automatically when there is no roll film bag making during operation.

Model

GH1200K

Lane number

5-14

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:40-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

 4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
