GH1200Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:30-120mm
Delivery date:30-45 days

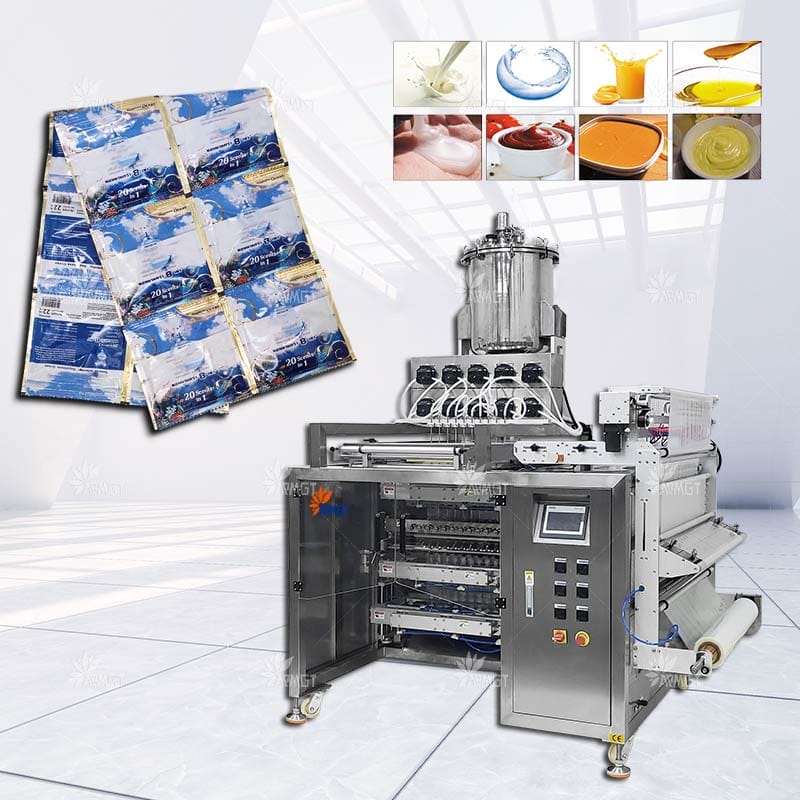

GH1200Y multi-lane packaging machine can automatically complete bag forming, date printing, quantitative filling, sealing and cutting, counting. It is beautiful and reliable, and the whole machine adopts stainless steel structure to ensure the national health standard.

GH1200Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:30-120mm
Delivery date:30-45 days

GH1200Y multi-lane packaging machine can automatically complete bag forming, date printing, quantitative filling, sealing and cutting, counting. It is beautiful and reliable, and the whole machine adopts stainless steel structure to ensure the national health standard.

  • PLC controlling system on the machine, which makes the machine work stably. No need to stop the machine to adjust parameters;
  • Advance design, easy to control, install, and clean;
  • The machine adopts with servo film driving system, PLC program control, Season tracking, can make sure each bag dimension is very nice;
  • According to the viscosity of the filled liquid, you can choose to replace the different pump;
  • It is equipped with a protective cover to avoid unnecessary damage during use;
  • Optional English or other languages screen display, easy and simple operation;
  • The film can be replaced easily on the film roller;
  • High speed of fine and clean cutting and sealing bags;
  • Positioned stop function to avoid sticking blades and wasting packing materials.

Model

GH1200Y

Lane number

5-20

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  • PLC controlling system on the machine, which makes the machine work stably. No need to stop the machine to adjust parameters;
  • Advance design, easy to control, install, and clean;
  • The machine adopts with servo film driving system, PLC program control, Season tracking, can make sure each bag dimension is very nice;
  • According to the viscosity of the filled liquid, you can choose to replace the different pump;
  • It is equipped with a protective cover to avoid unnecessary damage during use;
  • Optional English or other languages screen display, easy and simple operation;
  • The film can be replaced easily on the film roller;
  • High speed of fine and clean cutting and sealing bags;
  • Positioned stop function to avoid sticking blades and wasting packing materials.

Model

GH1200Y

Lane number

5-20

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-120mm

Film width&thickness

Max.1200mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

2220*2210*2600mm; 800kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
