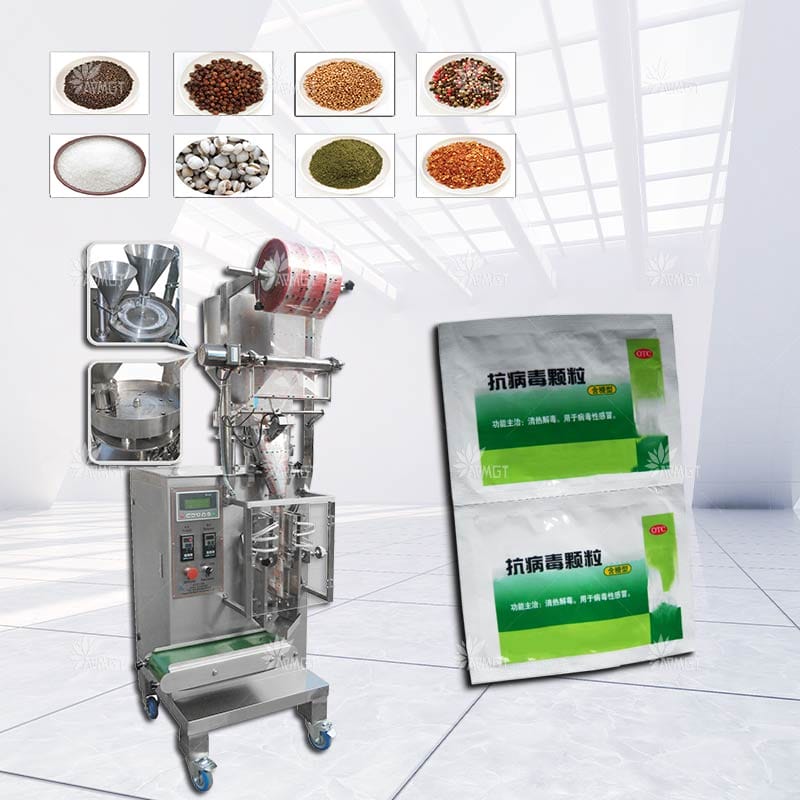

GH240K-2 Double Lane Granule Small Packing Machine APMGT

Speed:Max.120bags/min
Bag size:L:20-130mm;W:20-60mm
Delivery date:30-45 days

Automatic packaging of granule in the formed pouch for the food, pharmaceutical, chemical, and other industries. It is made in stainless steel, this machine fully meets the requirements of good manufacturing practices and other health standards.

GH240K-2 Double Lane Granule Small Packing Machine APMGT

Speed:Max.120bags/min
Bag size:L:20-130mm;W:20-60mm
Delivery date:30-45 days

Automatic packaging of granule in the formed pouch for the food, pharmaceutical, chemical, and other industries. It is made in stainless steel, this machine fully meets the requirements of good manufacturing practices and other health standards.

  • Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport, and other processes in a fully automatic multi-functional packaging machine;
  • Use manual man-machine interface and automatic detection and alarm system program for this machine;
  • The use of pneumatic controls and mechanical positioning, so filling high-precision;
  • High speed of fine and clean cutting and sealing bags.
  • High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy;
  • The film can be replaced easily on the film roller;
  • Positioned stop function avoids sticking blades and wasting materials;
  • Computer/PLC control system to maximize the whole machine’s control precision, reliability, and intellectualized degree;

 Model

GH240K-2

Track number

Double tracks

Fillling range

125ml/lane

 Measuring Method

Volumetric cup

 Capacity

Max.35 bags/min

 Bag size

L:20-130mm;W:20-60mm

 Film width

Max.240mm

 Sealing type

4 size sealing

 Cutting type

1. Straight cutting; 2.Zig zag cutting; 3.Coutinuous cutting

 Power supply

1N+PE/50HZ/AC220V/1.2kw

 DIM & WT

600*600*1600mm; 300kg



     Solid beverage      Washing powder            Coffee         All kinds of drugs



  Salt, Sugar, Pepper,Spice

 -Suit to granule product: Salt, Sugar, Sepper, Washing powder, 3 in 1 coffee ,Spice, Solid beverage, Chinese medicine granuls etc.

  • Empty bag detection device
  • Straight cut with easy tear line
  • Fix number cutting device
  • Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport, and other processes in a fully automatic multi-functional packaging machine;
  • Use manual man-machine interface and automatic detection and alarm system program for this machine;
  • The use of pneumatic controls and mechanical positioning, so filling high-precision;
  • High speed of fine and clean cutting and sealing bags.
  • High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy;
  • The film can be replaced easily on the film roller;
  • Positioned stop function avoids sticking blades and wasting materials;
  • Computer/PLC control system to maximize the whole machine’s control precision, reliability, and intellectualized degree;

 Model

GH240K-2

Track number

Double tracks

Fillling range

125ml/lane

 Measuring Method

Volumetric cup

 Capacity

Max.35 bags/min

 Bag size

L:20-130mm;W:20-60mm

 Film width

Max.240mm

 Sealing type

4 size sealing

 Cutting type

1. Straight cutting; 2.Zig zag cutting; 3.Coutinuous cutting

 Power supply

1N+PE/50HZ/AC220V/1.2kw

 DIM & WT

600*600*1600mm; 300kg



     Solid beverage      Washing powder            Coffee         All kinds of drugs



  Salt, Sugar, Pepper,Spice

 -Suit to granule product: Salt, Sugar, Sepper, Washing powder, 3 in 1 coffee ,Spice, Solid beverage, Chinese medicine granuls etc.

  • Empty bag detection device
  • Straight cut with easy tear line
  • Fix number cutting device
