GH280BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:50-180mm;W:20-90mm
Delivery date:30-45 days

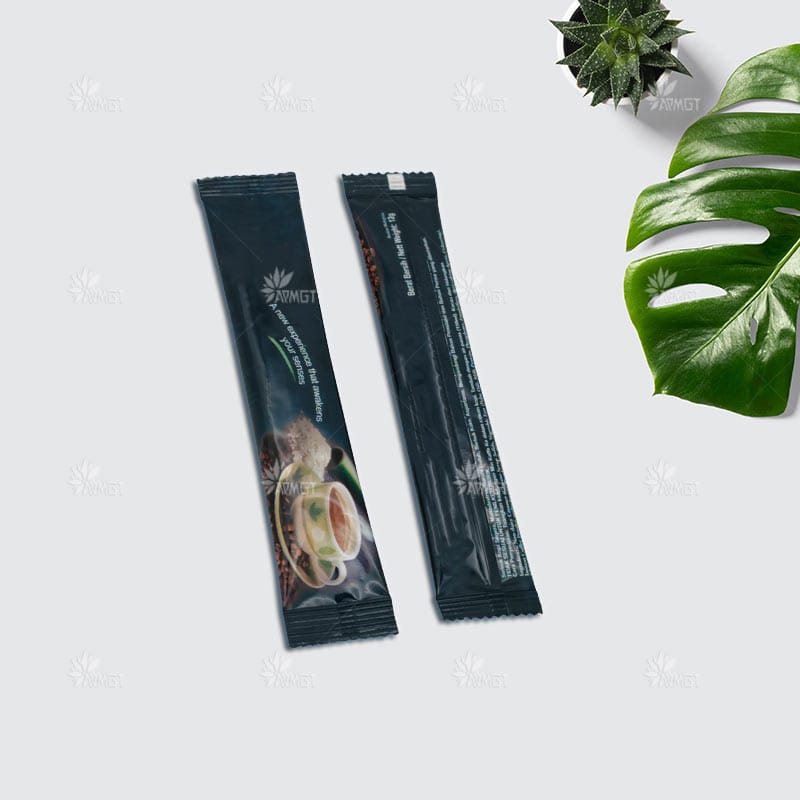

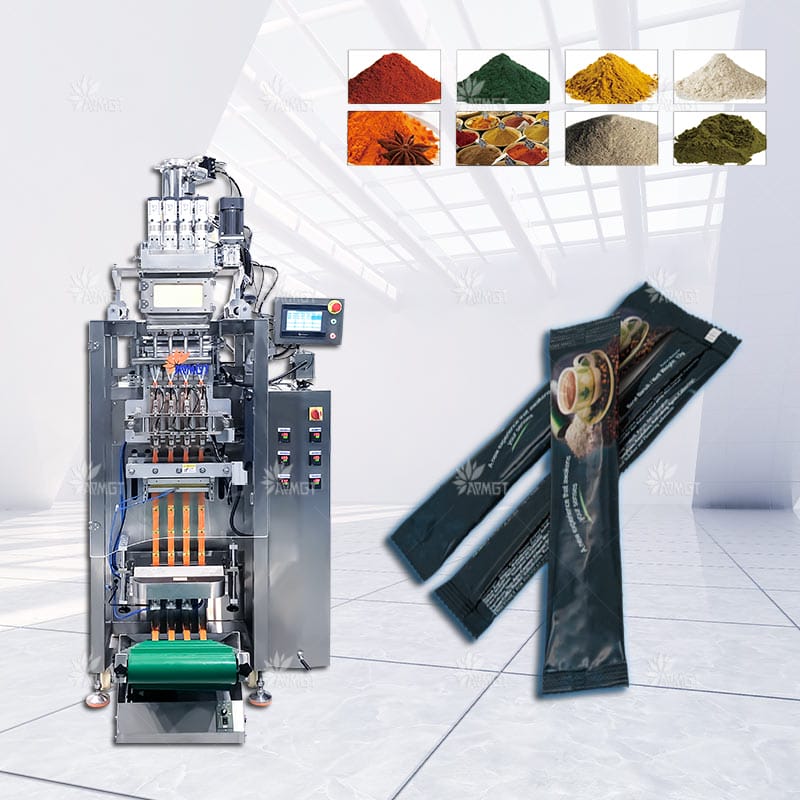

GH280BF vertical multi-lane filling and sealing bagging machine is designed for packaging back-seal bags, suitable for various markets such as food and medicine, including flour, coffee powder, medicinal powder, etc. It is a good choice for enhancing product competitiveness.

GH280BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:50-180mm;W:20-90mm
Delivery date:30-45 days

GH280BF vertical multi-lane filling and sealing bagging machine is designed for packaging back-seal bags, suitable for various markets such as food and medicine, including flour, coffee powder, medicinal powder, etc. It is a good choice for enhancing product competitiveness.

  • The machine has high precision and good stability;
  • It has complete safety measures to protect the safety of equipment and personnel;
  • Particularly compact footprint.
  • Module which can be independent or integrated into the produce collating section of the box machine and case packer;
  • Automatically complete the functions of metering, bag making, filling, nitrogen filling, etc. The main part in contact with the filling content is made of stainless steel, which meets safety and health standards;
  • Automatic control and easier installation of packing film;
  • The equipped bag maker has a small accuracy error, which can avoid problems such as film deviation, bag-making deformation, and wrinkling.

Model

GH280BF

Lane number

3-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm;550kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  • The machine has high precision and good stability;
  • It has complete safety measures to protect the safety of equipment and personnel;
  • Particularly compact footprint.
  • Module which can be independent or integrated into the produce collating section of the box machine and case packer;
  • Automatically complete the functions of metering, bag making, filling, nitrogen filling, etc. The main part in contact with the filling content is made of stainless steel, which meets safety and health standards;
  • Automatic control and easier installation of packing film;
  • The equipped bag maker has a small accuracy error, which can avoid problems such as film deviation, bag-making deformation, and wrinkling.

Model

GH280BF

Lane number

3-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm;550kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
