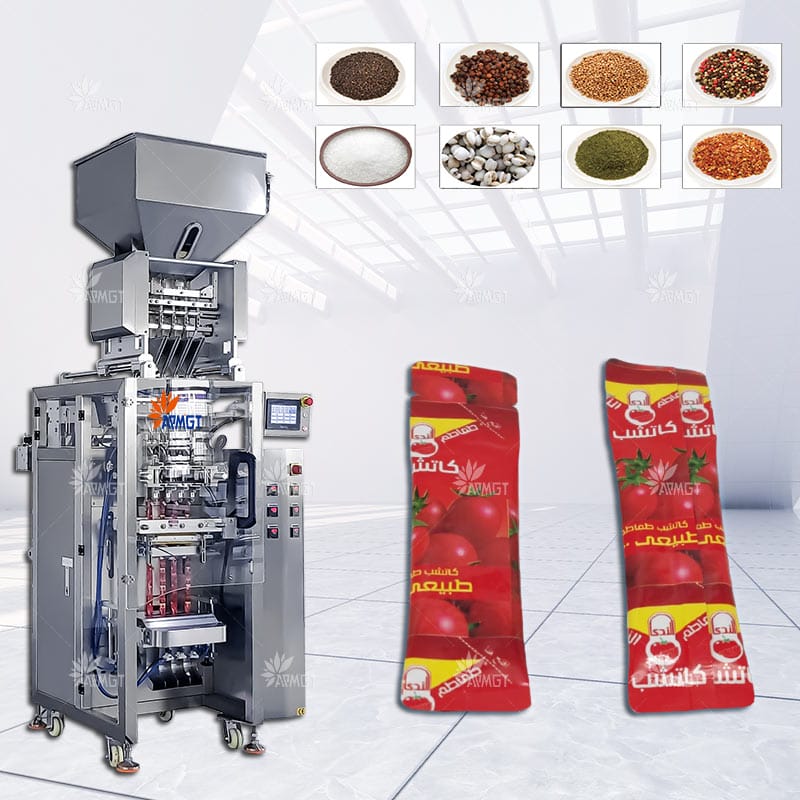

GH280BK Multi Lane Back Sealing bag Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:17-65mm
Delivery date:30-45 days

GH280BK multi-lane back sealing bag granule packing machine is characterized by a robust tube frame and a high quality in the selection of mechanical and electrical components. It has a wide range of packaging. By selecting different specifications, it can be suitable for packaging granules materials, such as salt, sugar, coffee, spices, etc.

GH280BK Multi Lane Back Sealing bag Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:17-65mm
Delivery date:30-45 days

GH280BK multi-lane back sealing bag granule packing machine is characterized by a robust tube frame and a high quality in the selection of mechanical and electrical components. It has a wide range of packaging. By selecting different specifications, it can be suitable for packaging granules materials, such as salt, sugar, coffee, spices, etc.

  • Fully complete the production process of feeding, automatic bag making, coding, bag opening, quantitative filling, heat sealing, and finished product output;
  • The intelligent combination scale adopts advanced PLC plus touch screen operation interface, which is easy to operate, high in precision, fast in speed, and stable in performance;
  • Print production date and expiration date, flexibly adjust the date.
  • Safety device: When the working air pressure is abnormal or the heating pipe fails, an alarm will be given;
  • It meets the unsanitary standards of food processing machinery, the machine is in contact with materials or the packaging bags are treated with stainless steel or other materials that meet the food hygiene requirements to ensure food hygiene and safety standards, and require packaging of anti-corrosion chemical products;
  • With a color system controller, a complete trademark design can be obtained;
  • Suitable for packaging materials such as composite film and tin foil. Excellent packaging performance, low noise, clear sealing lines, and strong sealing performance.

Model

GH280BK

Lane number

2-6

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-65mm

Film width&thickness

Max.280mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 3.5kw

DIM & WT

1385*918*2005mm; 350kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Fully complete the production process of feeding, automatic bag making, coding, bag opening, quantitative filling, heat sealing, and finished product output;
  • The intelligent combination scale adopts advanced PLC plus touch screen operation interface, which is easy to operate, high in precision, fast in speed, and stable in performance;
  • Print production date and expiration date, flexibly adjust the date.
  • Safety device: When the working air pressure is abnormal or the heating pipe fails, an alarm will be given;
  • It meets the unsanitary standards of food processing machinery, the machine is in contact with materials or the packaging bags are treated with stainless steel or other materials that meet the food hygiene requirements to ensure food hygiene and safety standards, and require packaging of anti-corrosion chemical products;
  • With a color system controller, a complete trademark design can be obtained;
  • Suitable for packaging materials such as composite film and tin foil. Excellent packaging performance, low noise, clear sealing lines, and strong sealing performance.

Model

GH280BK

Lane number

2-6

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-65mm

Film width&thickness

Max.280mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 3.5kw

DIM & WT

1385*918*2005mm; 350kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
