multi lane packing machine
multi lane packing machine
multi lane packing machine

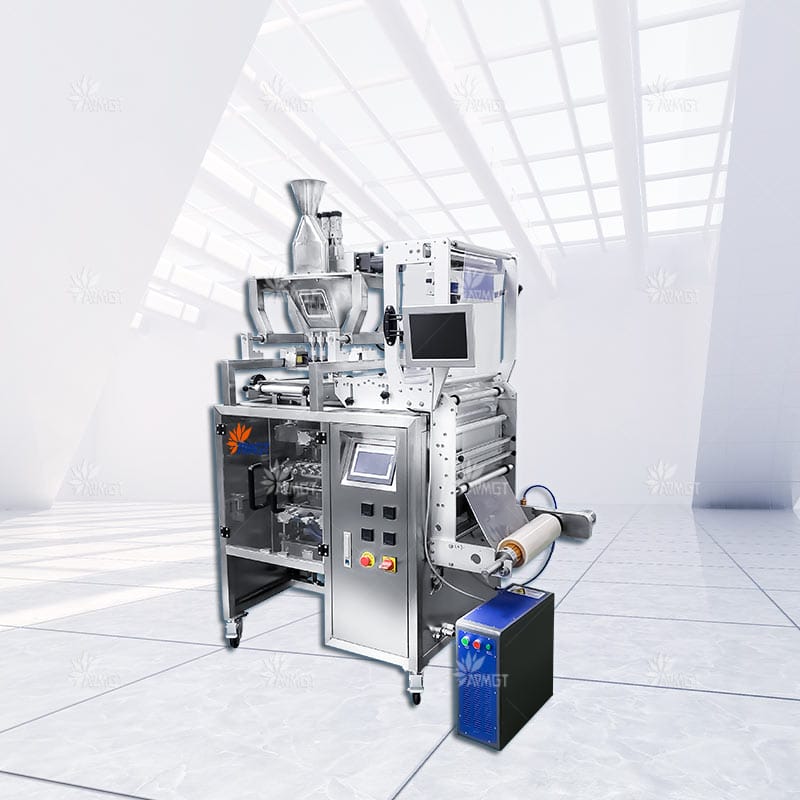

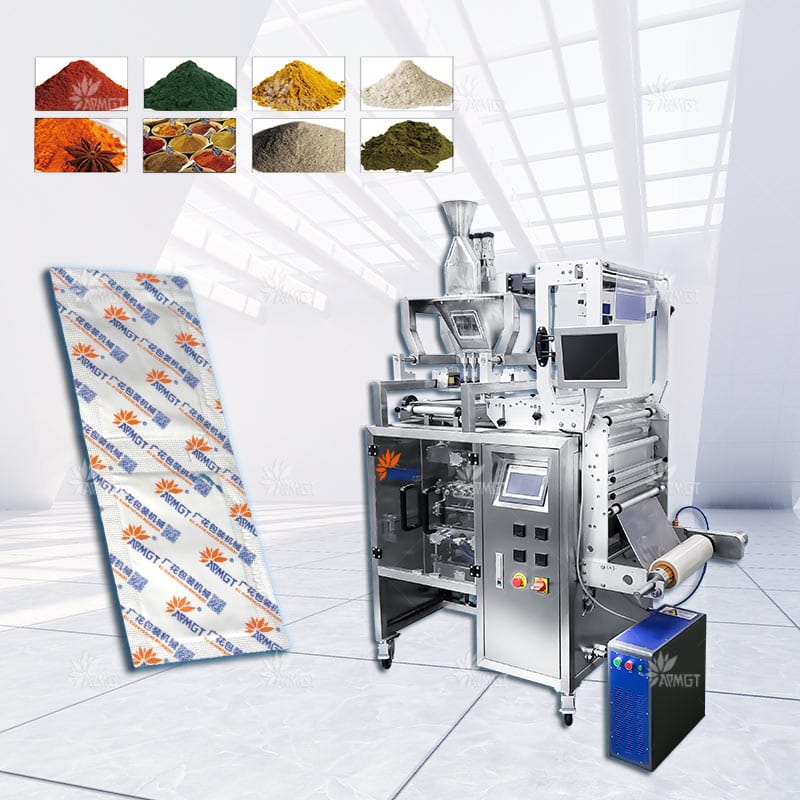

GH480F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed： Max.40 cycles/min
Bag size：L:45-120mm;W:50-120mm
Delivery date：30-45 days

GH480F automatic multi-lane powder packing machine used to make 4-side sealing bags. This machine is novel in design, reasonable in structure, and most practical. The bag maker is controlled inside the machine to ensure safe operation. GH480F adopts PLC control, simple operation, and convenient adjustment. At the same time, it has many advantages, such as high-precision sealing positioning, stable feeding, automatic counting, alarm, etc.

Categories: Tag: , ,
Contact Us
Contact Us
multi lane packing machine
multi lane packing machine
multi lane packing machine

GH480F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed： Max.40 cycles/min
Bag size：L:45-120mm;W:50-120mm
Delivery date：30-45 days

GH480F automatic multi-lane powder packing machine used to make 4-side sealing bags. This machine is novel in design, reasonable in structure, and most practical. The bag maker is controlled inside the machine to ensure safe operation. GH480F adopts PLC control, simple operation, and convenient adjustment. At the same time, it has many advantages, such as high-precision sealing positioning, stable feeding, automatic counting, alarm, etc.

Categories: Tag: , ,
Contact Us
Contact Us
Catalogue
Catalogue
  • Pneumatic control is adopted for metering and bag making, which is easy to operate; there will be fewer wearing parts in the future, reducing the replacement of parts;
  • The frame and the parts in contact with the material are made of stainless steel;
  • Using photoelectric precise positioning to ensure the integrity of the pattern. The machine alarms when the photoelectric is abnormal, and the cursor stops automatically when the cursor is abnormal;
  • The intelligent thermostat controls the sealing temperature in the horizontal and vertical directions;
  • The chassis design is more humane, with a transparent acrylic protective cover, to observe the machine’s running status. The cabinet is easy to open, convenient for daily cleaning and maintenance;
  • It can be equipped with a feeder, which can realize the conveying of materials from low to high, with upper and lower limits. Automatic feeding when lacking material, automatic shutdown when full material, reducing manual feeding time.

Model

GH480F

Lane number

2-4

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.480mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.



  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Pneumatic control is adopted for metering and bag making, which is easy to operate; there will be fewer wearing parts in the future, reducing the replacement of parts;
  • The frame and the parts in contact with the material are made of stainless steel;
  • Using photoelectric precise positioning to ensure the integrity of the pattern. The machine alarms when the photoelectric is abnormal, and the cursor stops automatically when the cursor is abnormal;
  • The intelligent thermostat controls the sealing temperature in the horizontal and vertical directions;
  • The chassis design is more humane, with a transparent acrylic protective cover, to observe the machine’s running status. The cabinet is easy to open, convenient for daily cleaning and maintenance;
  • It can be equipped with a feeder, which can realize the conveying of materials from low to high, with upper and lower limits. Automatic feeding when lacking material, automatic shutdown when full material, reducing manual feeding time.

Model

GH480F

Lane number

2-4

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.480mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.



  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
