GH480Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:30-60mm
Delivery date:30-45 days

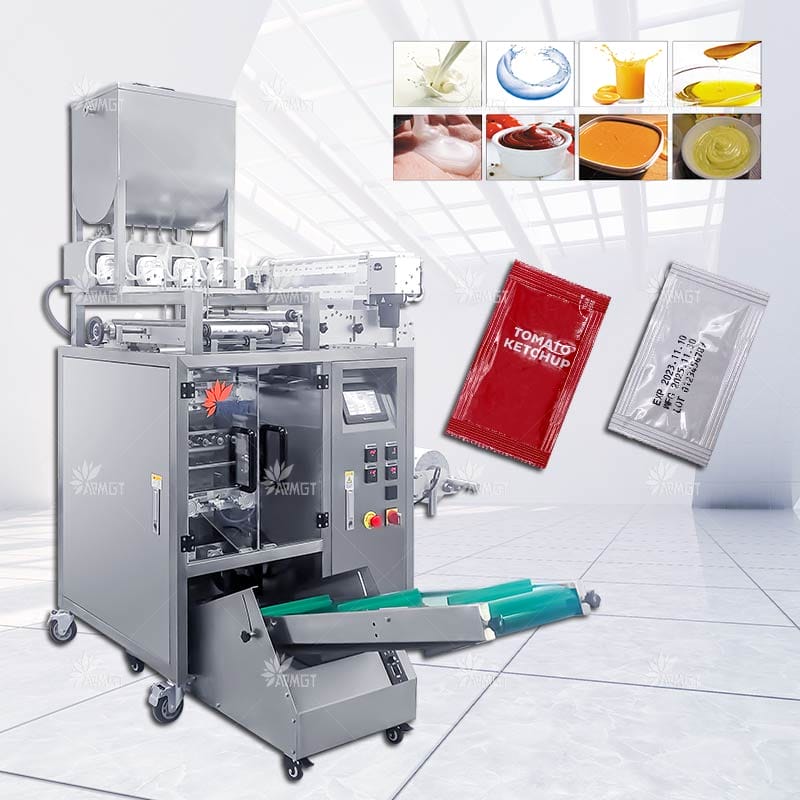

The GH480Y multi-lane stick packaging machine is compact, modular, sturdy, and durable. It is very suitable for producing low-to-medium-quality stick packaging and sealing products with minimal investment. The output range is a maximum of 40 cycles per minute for 2-8 lane operation. Very suitable for the food, cosmetics, and pharmaceutical industries.

GH480Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:30-60mm
Delivery date:30-45 days

The GH480Y multi-lane stick packaging machine is compact, modular, sturdy, and durable. It is very suitable for producing low-to-medium-quality stick packaging and sealing products with minimal investment. The output range is a maximum of 40 cycles per minute for 2-8 lane operation. Very suitable for the food, cosmetics, and pharmaceutical industries.

  • Automatic alarm and shutdown without film, unnecessary waste can be controlled;
  • Large capacity, high strength, low noise, compact structure ;
  • Stable operation, easy maintenance, long service life;
  • PLC computer control system, the operation is more stable, no need to stop the machine to adjust any parameters;
  • Equipped with the photoelectric tracking system, the equipment can count automatically;
  • With highly automated correction function;
  • The pump metering adjustment device can adjust the packaging capacity during the operation of the machine, reduce material loss and improve production efficiency.

Model

GH480Y

Lane number

2-8

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-60mm

Film width&thickness

Max.480mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 2.8kw

DIM & WT

950*1470*1750mm; 300kg

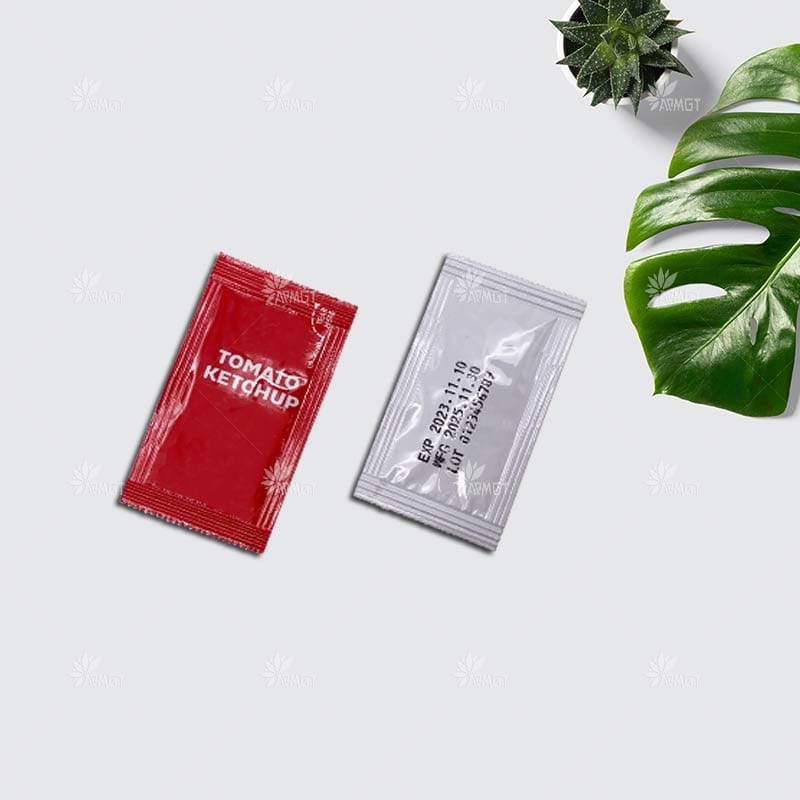

Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  •
  • In-feed and take-away conveyors
  • Automatic alarm and shutdown without film, unnecessary waste can be controlled;
  • Large capacity, high strength, low noise, compact structure ;
  • Stable operation, easy maintenance, long service life;
  • PLC computer control system, the operation is more stable, no need to stop the machine to adjust any parameters;
  • Equipped with the photoelectric tracking system, the equipment can count automatically;
  • With highly automated correction function;
  • The pump metering adjustment device can adjust the packaging capacity during the operation of the machine, reduce material loss and improve production efficiency.

Model

GH480Y

Lane number

2-8

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-60mm

Film width&thickness

Max.480mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 2.8kw

DIM & WT

950*1470*1750mm; 300kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  •
  • In-feed and take-away conveyors
