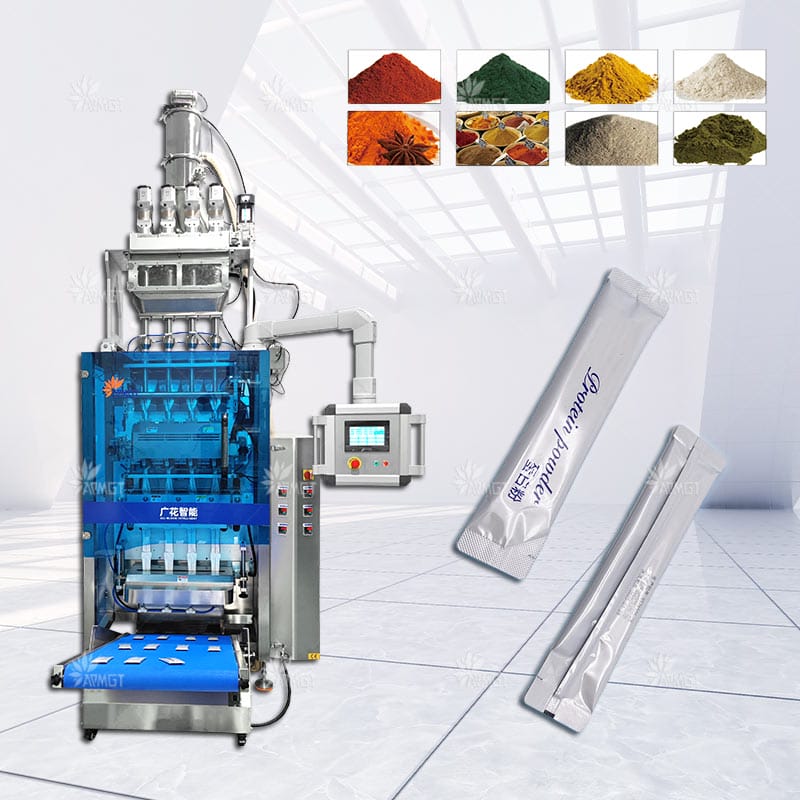

GH560BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed：Max.40 cycle/min
Bag size：L:50-180mm;W:20-90mm
Delivery date：30-45 days

GH560F is suitable for packing powder products and sealing back sealing sachet, including the bag forming, filling, sealing, cutting, and printing. It is easy to operate, and the size of the pouch can be changed.

Categories: Tag: , ,
Contact Us
Contact Us

GH560BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed：Max.40 cycle/min
Bag size：L:50-180mm;W:20-90mm
Delivery date：30-45 days

GH560F is suitable for packing powder products and sealing back sealing sachet, including the bag forming, filling, sealing, cutting, and printing. It is easy to operate, and the size of the pouch can be changed.

Categories: Tag: , ,
Contact Us
Contact Us
Catalogue
Catalogue
  • Servo heat sealing bag, vertical sealing without stickers, exquisite bag shape;
  • The contact part between the box body and the material is made of 304 stainless steel, which conforms to GMP production;
  • The heating parts and moving parts are hidden in the protective cover, which is safe and reliable;
  • The equipment is equipped with casters for easy handling and movement.
  • The screw is customized according to the number of crushing, powdering, and sugar content of the material to ensure that the material is not blocked during the filling process, and the accuracy is high;
  • The round pouch can be designed with the size of the nozzle and torn horizontally to prevent material overflow; the curved corners can also prevent children from scratching the corners of the eyes and increase product safety;
  • The packaging film is easy to install simple and fast;
  • More stable performance, simple maintenance, longer service life, the low failure rate.

Model

GH560BF

Lane number

3-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

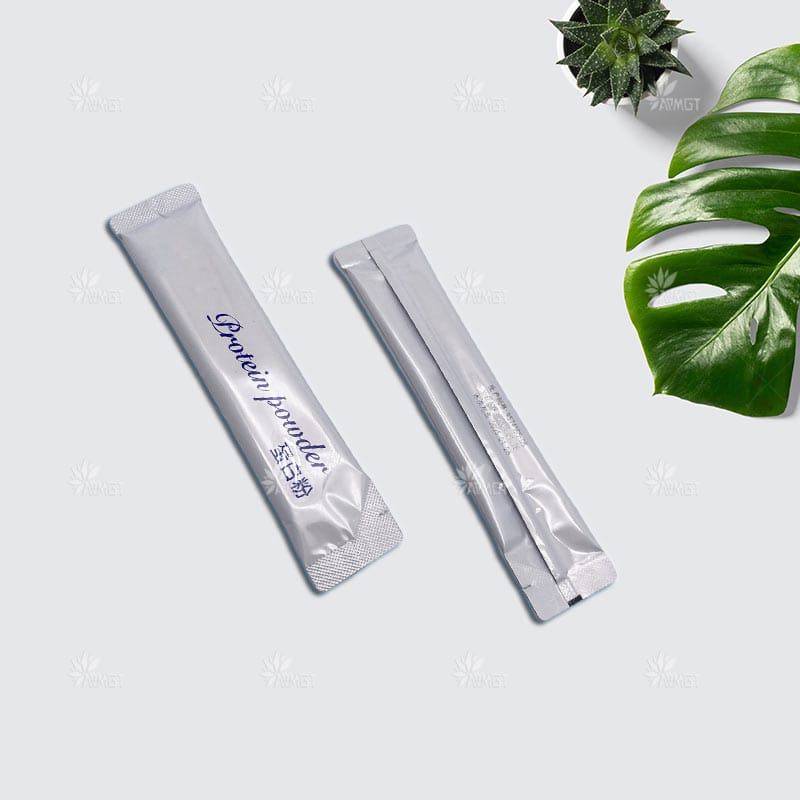

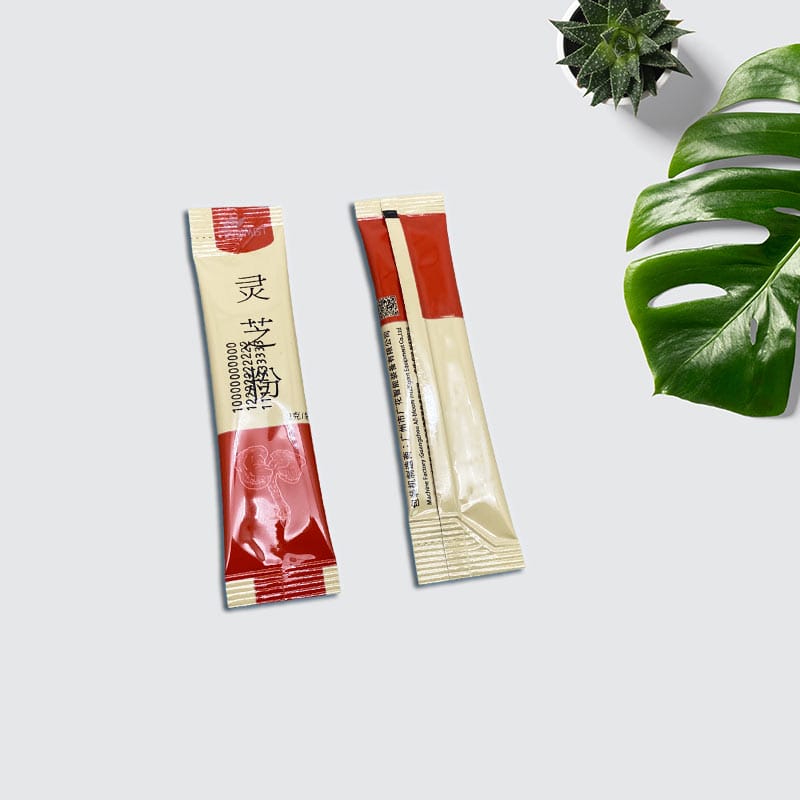

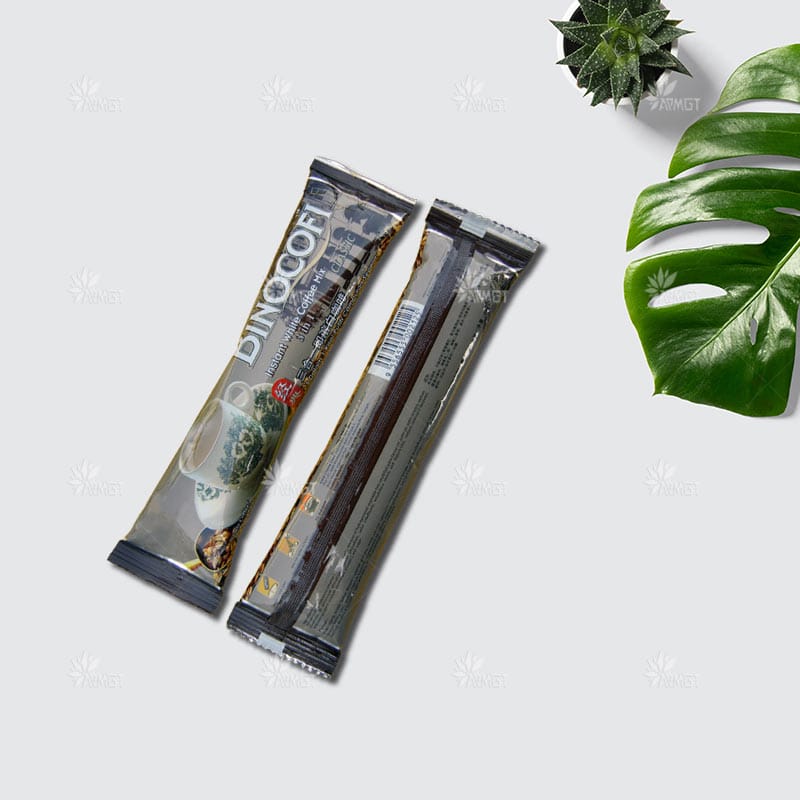

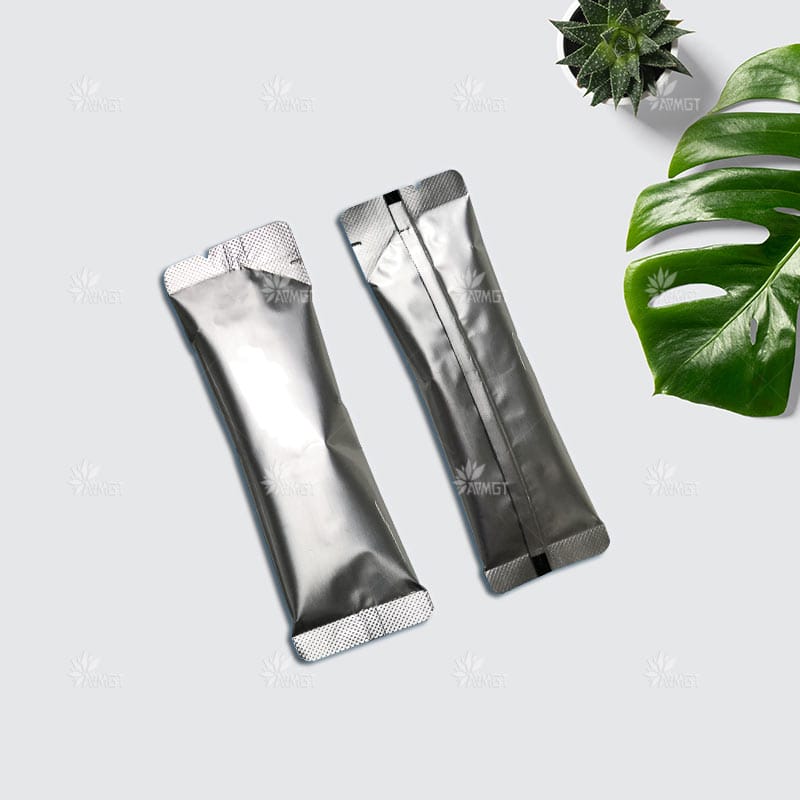

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm;550kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Servo heat sealing bag, vertical sealing without stickers, exquisite bag shape;
  • The contact part between the box body and the material is made of 304 stainless steel, which conforms to GMP production;
  • The heating parts and moving parts are hidden in the protective cover, which is safe and reliable;
  • The equipment is equipped with casters for easy handling and movement.
  • The screw is customized according to the number of crushing, powdering, and sugar content of the material to ensure that the material is not blocked during the filling process, and the accuracy is high;
  • The round pouch can be designed with the size of the nozzle and torn horizontally to prevent material overflow; the curved corners can also prevent children from scratching the corners of the eyes and increase product safety;
  • The packaging film is easy to install simple and fast;
  • More stable performance, simple maintenance, longer service life, the low failure rate.

Model

GH560BF

Lane number

3-10

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm;550kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
