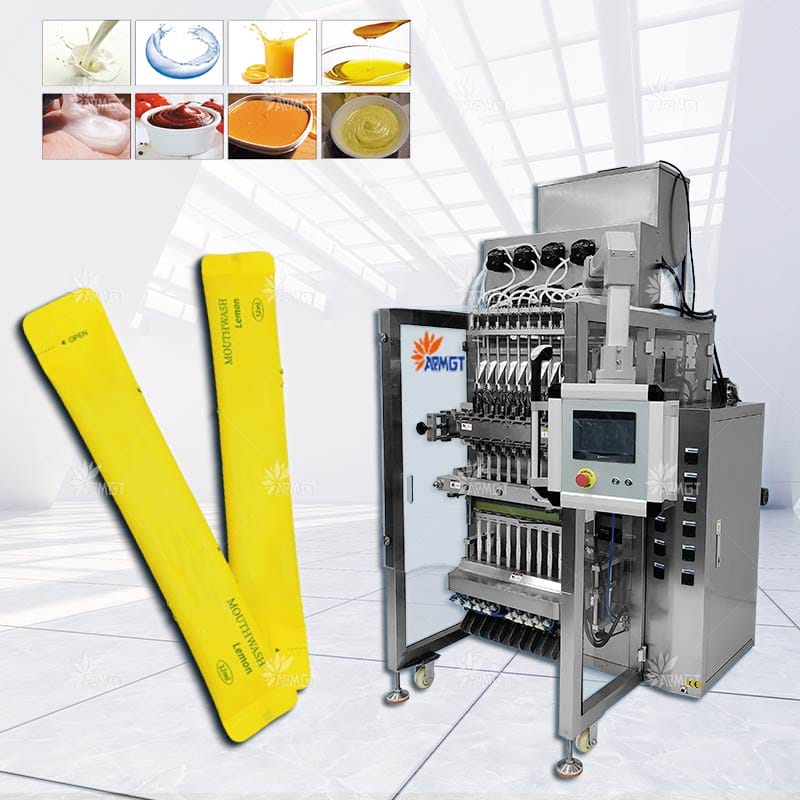

GH560BY Multi Lane Back Sealing Bag Liquid Packing Machine APMGT

Speed：Max.50 cycle/min
Bag size：L:50-180mm;W:17-100mm
Delivery date：30-45 days

GH560BY is an automatic multi-lane vertical back-seal packaging machine for liquid. The film used is cut to the designated channels, and the cylindrical bag is making a chute tube for each channel. This machine is an automatic weighing and filling method. The number of lanes can be freely selected from 3 to 12 lanes according to the width of the bag and product capacity. The machine is easy to operate, and the size of the pouch can be changed.

Categories: Tag: , ,
Contact Us
Contact Us

GH560BY Multi Lane Back Sealing Bag Liquid Packing Machine APMGT

Speed：Max.50 cycle/min
Bag size：L:50-180mm;W:17-100mm
Delivery date：30-45 days

GH560BY is an automatic multi-lane vertical back-seal packaging machine for liquid. The film used is cut to the designated channels, and the cylindrical bag is making a chute tube for each channel. This machine is an automatic weighing and filling method. The number of lanes can be freely selected from 3 to 12 lanes according to the width of the bag and product capacity. The machine is easy to operate, and the size of the pouch can be changed.

Categories: Tag: , ,
Contact Us
Contact Us
Catalogue
Catalogue
  • The photoelectric switch has high sensitivity, can automatically and accurately track the color code, and obtain a complete trademark pattern;
  • The integrated framework is adopted to make adjustments more convenient;
  • The whole machine is made of 304 stainless steel that conforms to the GMP standard;
  • This machine can automatically complete the measurement, feeding, filling, bag making, date code printing, bag sealing, and cutting of multiple products;
  • Adopt advanced technology, humanized design, touch screen control system, high degree of automation;
  • Automatic fault alarm, shutdown and self-diagnosis can be viewed directly on the screen. Safe, easy to use, fast to maintain, automatic display of the number of bags, easy to count the workload of the machine;
  • Adopting the working principle of heat sealing, the motor controls the film pulling, and the film pulling speed is fast and stable.

Model

GH560BY

Lane number

3-12

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm; 550kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

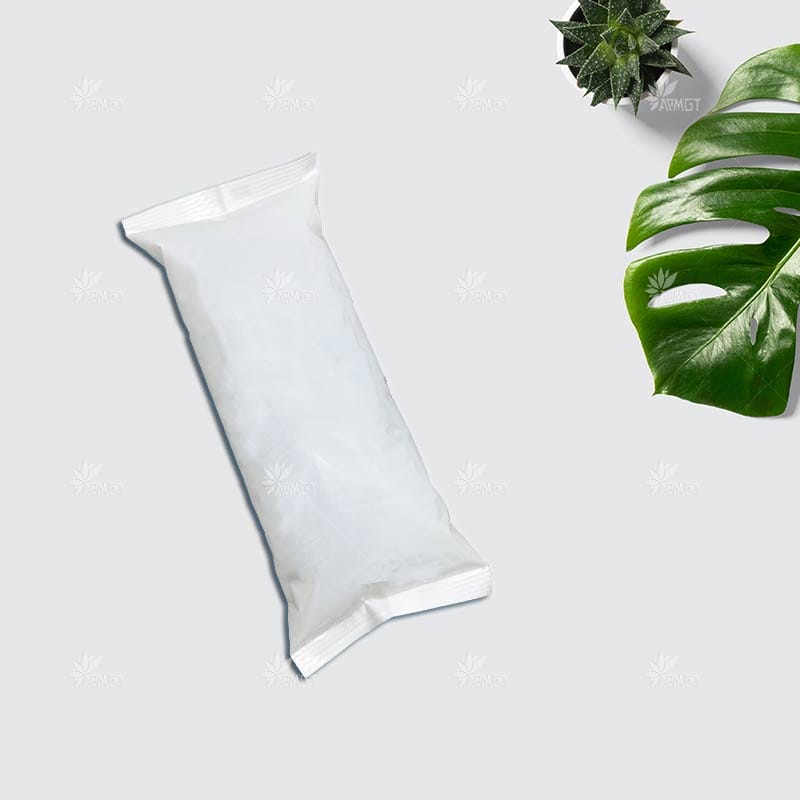

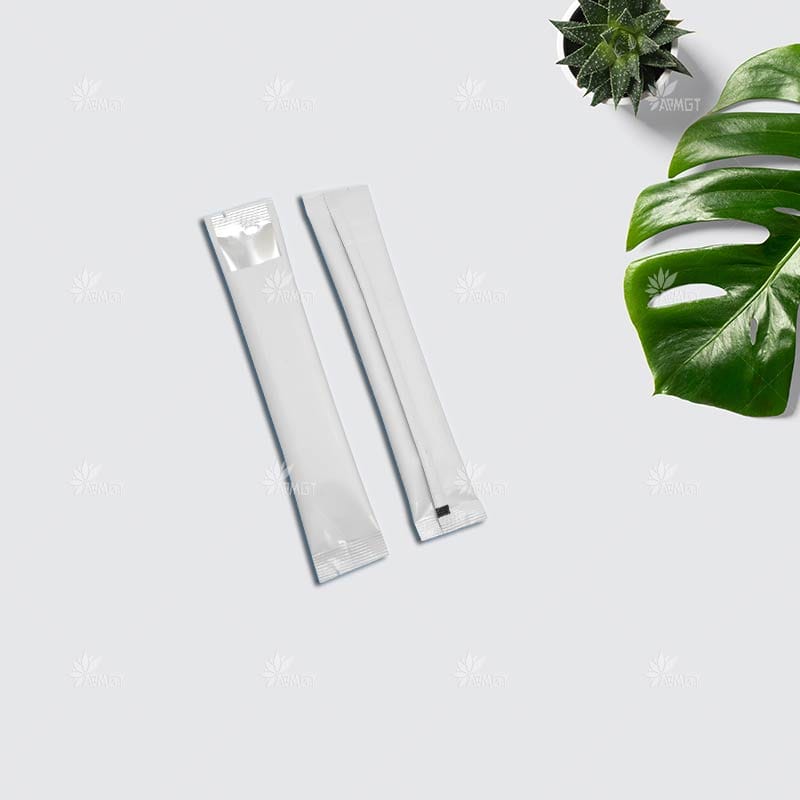

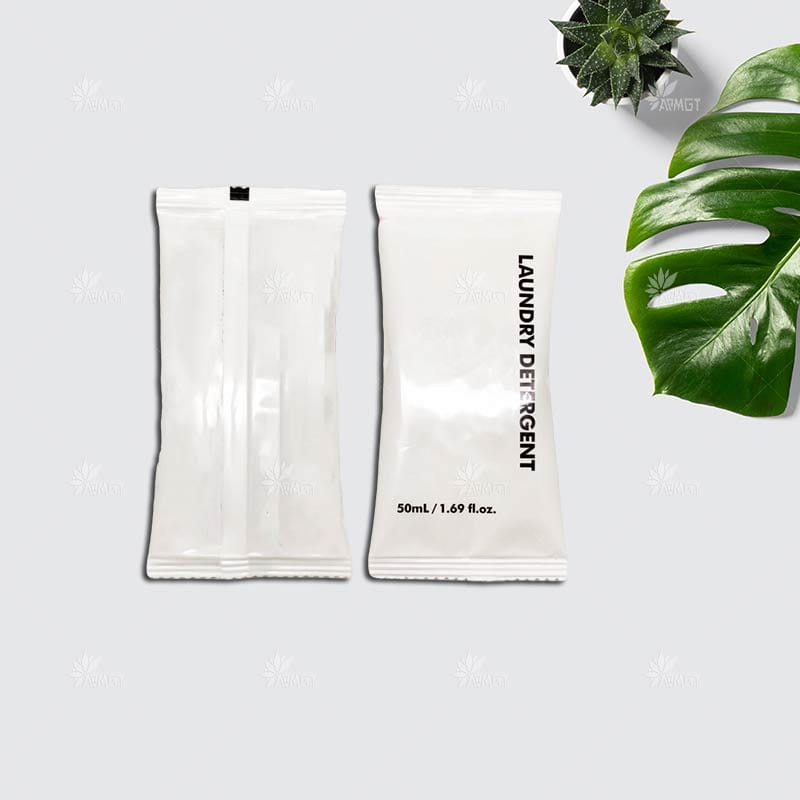

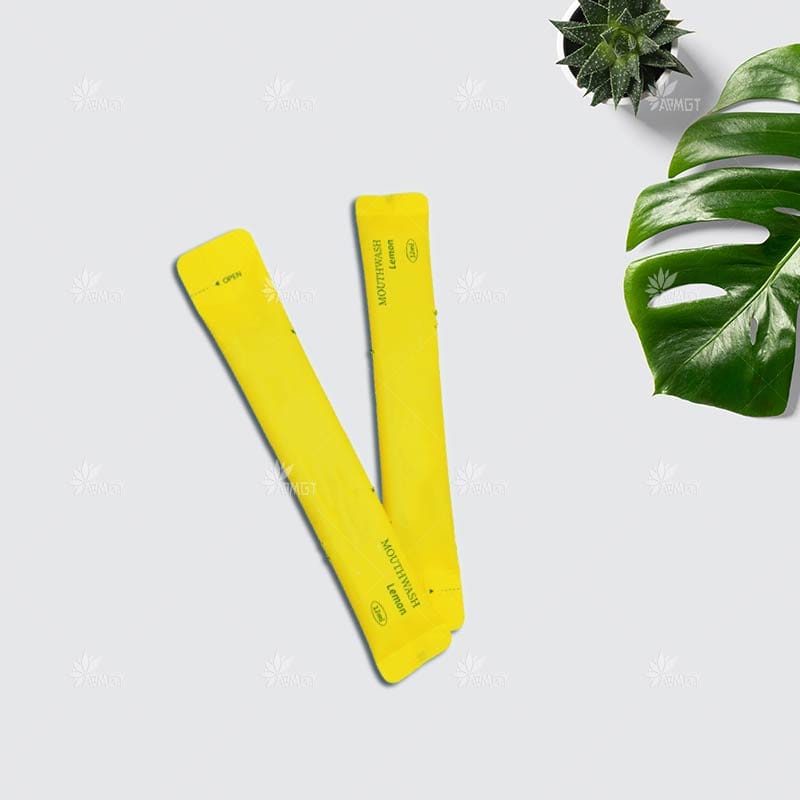

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • The photoelectric switch has high sensitivity, can automatically and accurately track the color code, and obtain a complete trademark pattern;
  • The integrated framework is adopted to make adjustments more convenient;
  • The whole machine is made of 304 stainless steel that conforms to the GMP standard;
  • This machine can automatically complete the measurement, feeding, filling, bag making, date code printing, bag sealing, and cutting of multiple products;
  • Adopt advanced technology, humanized design, touch screen control system, high degree of automation;
  • Automatic fault alarm, shutdown and self-diagnosis can be viewed directly on the screen. Safe, easy to use, fast to maintain, automatic display of the number of bags, easy to count the workload of the machine;
  • Adopting the working principle of heat sealing, the motor controls the film pulling, and the film pulling speed is fast and stable.

Model

GH560BY

Lane number

3-12

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-90mm

Film width&thickness

Max.560mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1685*1300*2005mm; 550kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
