Products

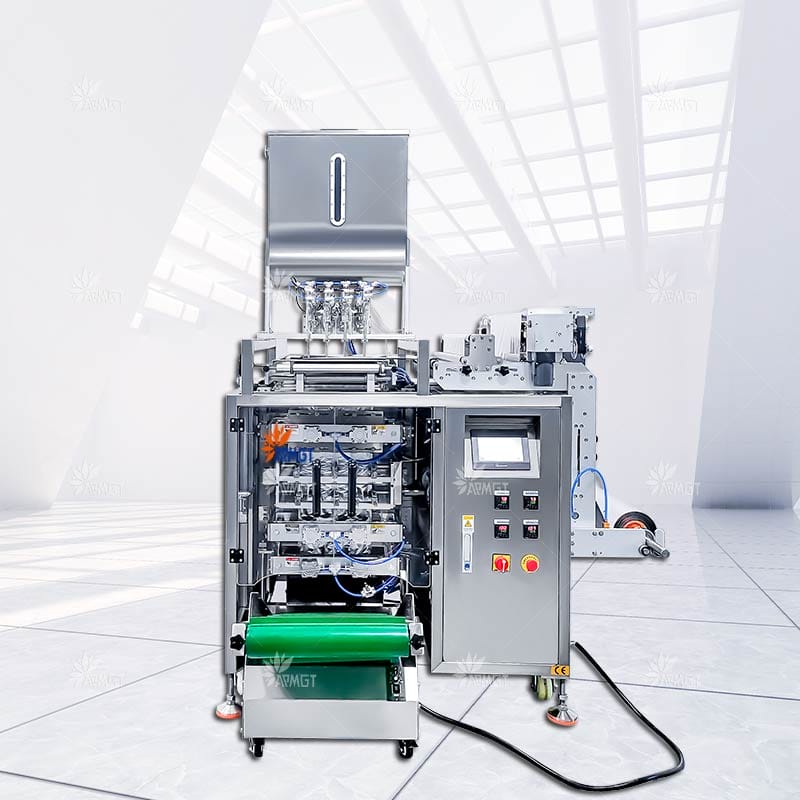

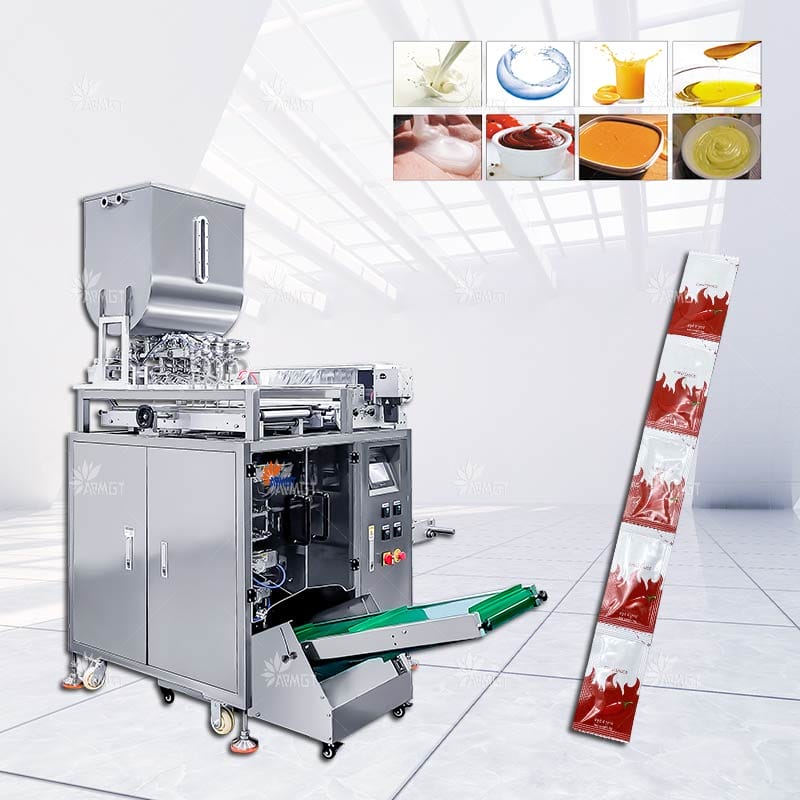

GH720Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:45-120mm;W:30-90mm
Delivery date:30-45 days

GH720Y 4 Side Sealing Liquid Packing Machine has excellent performance and flexible design. Piston pumps, peristaltic pumps, ceramic pumps, and rotary pumps can be equipped with liquid and paste options. Zigzag cutting, straight cutting, round cutting, and special cutting are available and can be easily set according to customer requirements.

GH720Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:45-120mm;W:30-90mm
Delivery date:30-45 days

GH720Y 4 Side Sealing Liquid Packing Machine has excellent performance and flexible design. Piston pumps, peristaltic pumps, ceramic pumps, and rotary pumps can be equipped with liquid and paste options. Zigzag cutting, straight cutting, round cutting, and special cutting are available and can be easily set according to customer requirements.

  • Safety and hygiene are the key to liquid packaging. It uses 304 stainless steel to meet GTM food standards, and all parts are from famous brands;
  • Easy to control the machine via touch screen like parameters setting, it can also detect faults and stop automatically to protect itself;
  • Servo motor control automatic measuring, convenient setting, simple operation and hig precision.
  • Intelligent constant temperature control system, suitable for different thickness film materials, sealing part firm, flat, airtight, and beautiful;
  • International brand electric cabinet controller, stable performance, each part has a corresponding number for easy maintenance;
  • All the components used in this control box are famous brands, which ensure the packaging machine runs well and has good performance during production.
  • Touch screen is connected with PLC system, it’s easy for operation and with high accuracy, it has double and multi-language for customers’

Model

GH720Y

Lane number

3-12

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-90mm

Film width&thickness

Max.720mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 4.1kw

DIM & WT

1153*1654*1750mm; 400kg

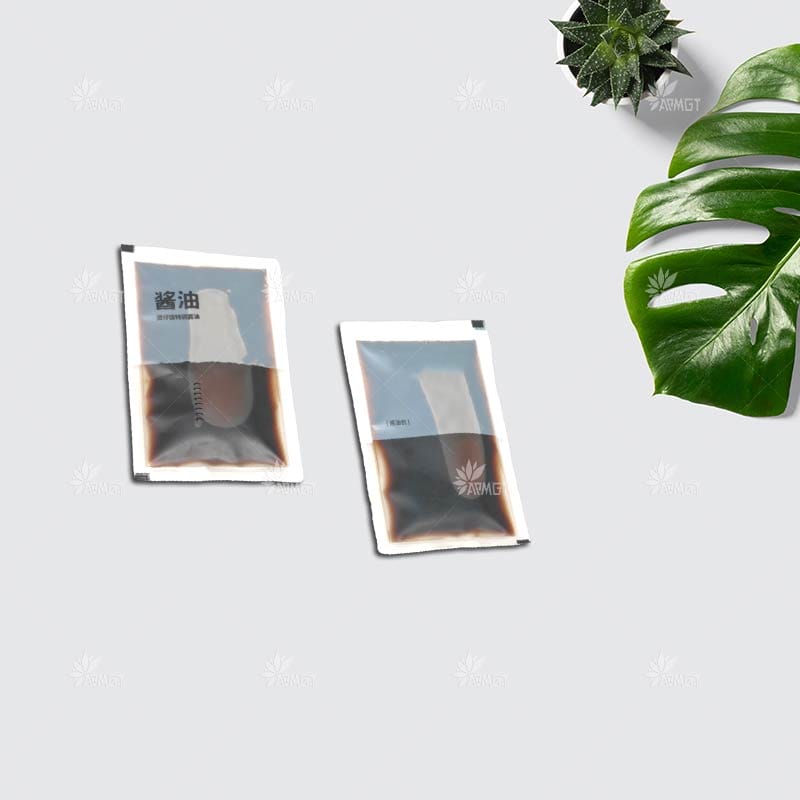

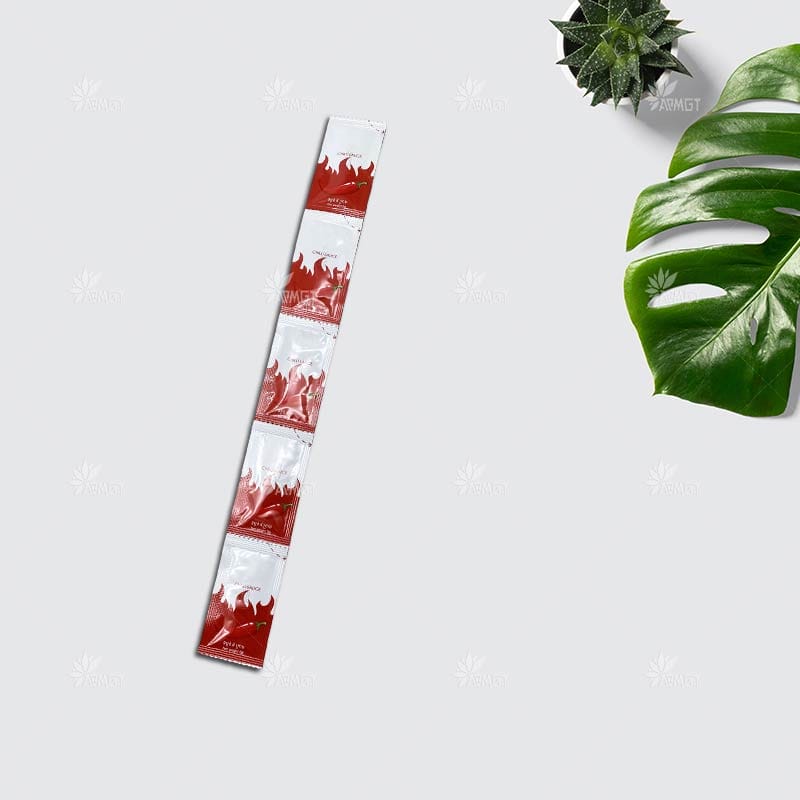

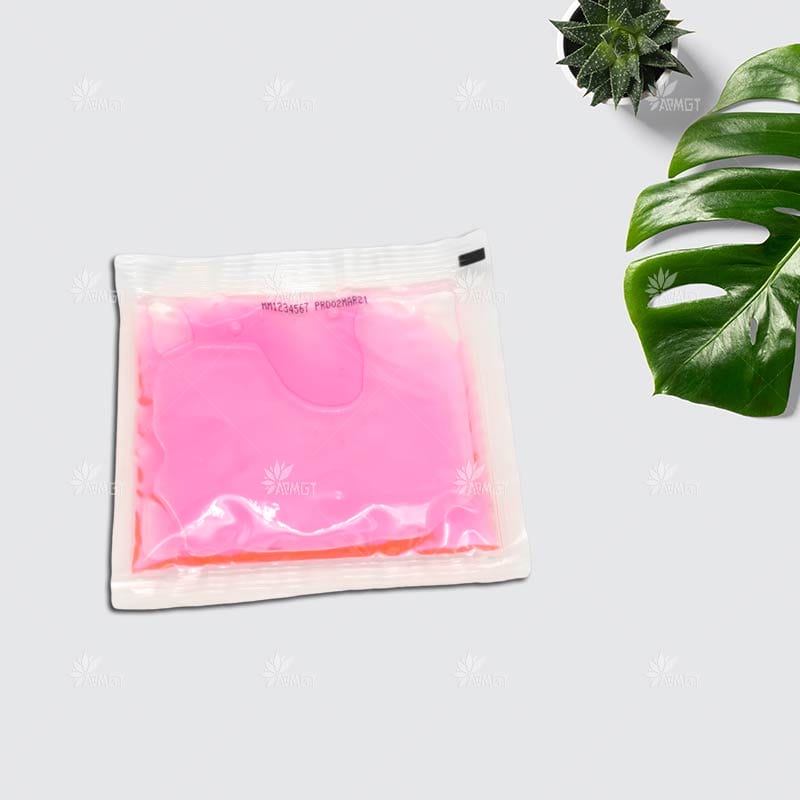

Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Safety and hygiene are the key to liquid packaging. It uses 304 stainless steel to meet GTM food standards, and all parts are from famous brands;
  • Easy to control the machine via touch screen like parameters setting, it can also detect faults and stop automatically to protect itself;
  • Servo motor control automatic measuring, convenient setting, simple operation and hig precision.
  • Intelligent constant temperature control system, suitable for different thickness film materials, sealing part firm, flat, airtight, and beautiful;
  • International brand electric cabinet controller, stable performance, each part has a corresponding number for easy maintenance;
  • All the components used in this control box are famous brands, which ensure the packaging machine runs well and has good performance during production.
  • Touch screen is connected with PLC system, it’s easy for operation and with high accuracy, it has double and multi-language for customers’

Model

GH720Y

Lane number

3-12

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-90mm

Film width&thickness

Max.720mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 4.1kw

DIM & WT

1153*1654*1750mm; 400kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
