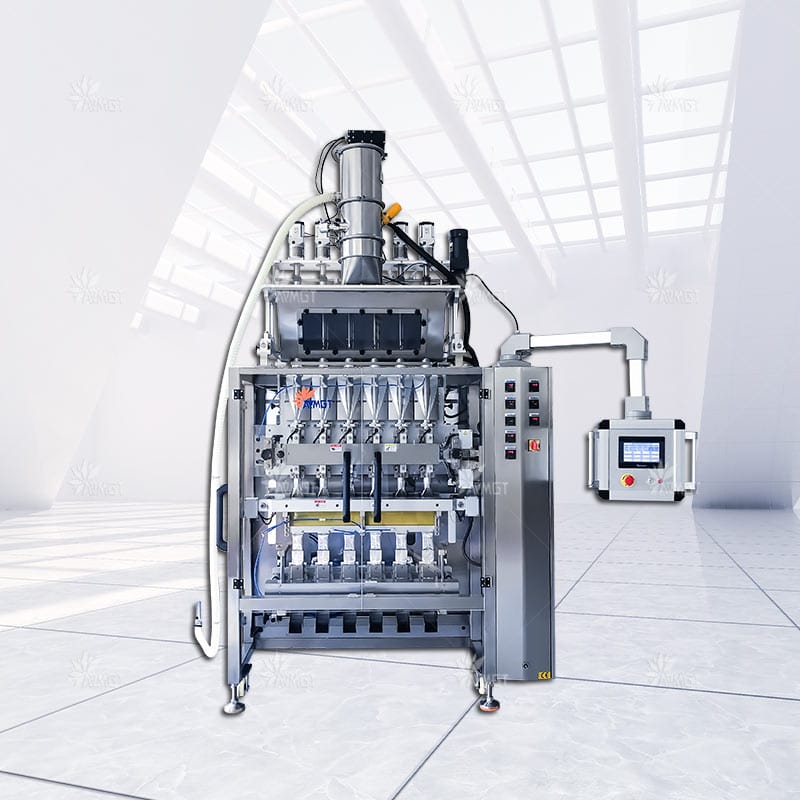

GH840BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed: Max.40 cycles/min
Bag size:L:50-180mm;W:20-100mm
Delivery date:30-45 days

GH840BF automatic multi lanes back sealing bag powder packing machine is capable of automatically measuring, making bags, filling, sealing, cutting, date printing (printer is optional), etc. Machine lines can be set up from 4-16 lines. And it is suitable for packing different kinds of materials like coffee powder, milk powder, and flour, etc.

GH840BF Multi Lane Back Sealing Bag Powder Packing Machine APMGT

Speed: Max.40 cycles/min
Bag size:L:50-180mm;W:20-100mm
Delivery date:30-45 days

GH840BF automatic multi lanes back sealing bag powder packing machine is capable of automatically measuring, making bags, filling, sealing, cutting, date printing (printer is optional), etc. Machine lines can be set up from 4-16 lines. And it is suitable for packing different kinds of materials like coffee powder, milk powder, and flour, etc.

This machine is easy operated and perfect structured which is the first choice of higher production efficiency, reducing labor intensity and higher packaging level;

Touch screen with PLC system, touch screen can be set up in many languages, and PLC system can store a large number of data for machine performance;

High accuracy; save electricity & speed fast.

Servo motor for controlling, which can make the whole machine running more steady;

Machine house is stainless steel which meets to GMP standard by pharmacy and food;

Adopted advanced PLC and photoelectric control system;

Automatic control and easier installation of packing film;

Close down type mechanism, defending powder into inside of machine.

Model

GH840BF

Lane number

4-16

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-100mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 7.5kw

DIM & WT

1700*1600*2500mm; 900kg

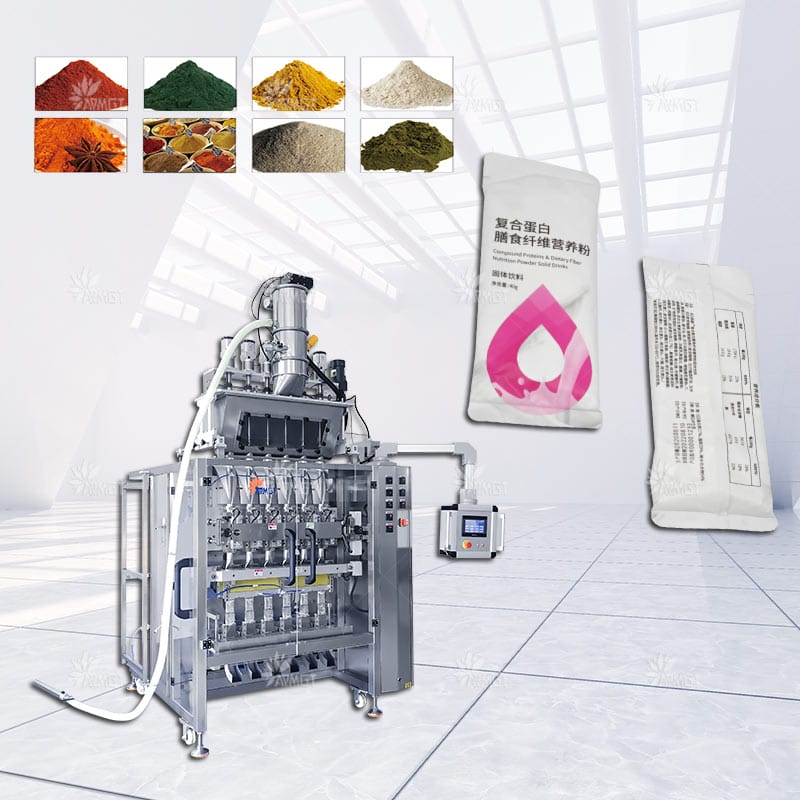

Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors

This machine is easy operated and perfect structured which is the first choice of higher production efficiency, reducing labor intensity and higher packaging level;

Touch screen with PLC system, touch screen can be set up in many languages, and PLC system can store a large number of data for machine performance;

High accuracy; save electricity & speed fast.

Servo motor for controlling, which can make the whole machine running more steady;

Machine house is stainless steel which meets to GMP standard by pharmacy and food;

Adopted advanced PLC and photoelectric control system;

Automatic control and easier installation of packing film;

Close down type mechanism, defending powder into inside of machine.

Model

GH840BF

Lane number

4-16

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:50-180mm;W:20-100mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 7.5kw

DIM & WT

1700*1600*2500mm; 900kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
