GH840BK Multi Lane Back Sealing Bag Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:17-100mm
Delivery date:30-45 days

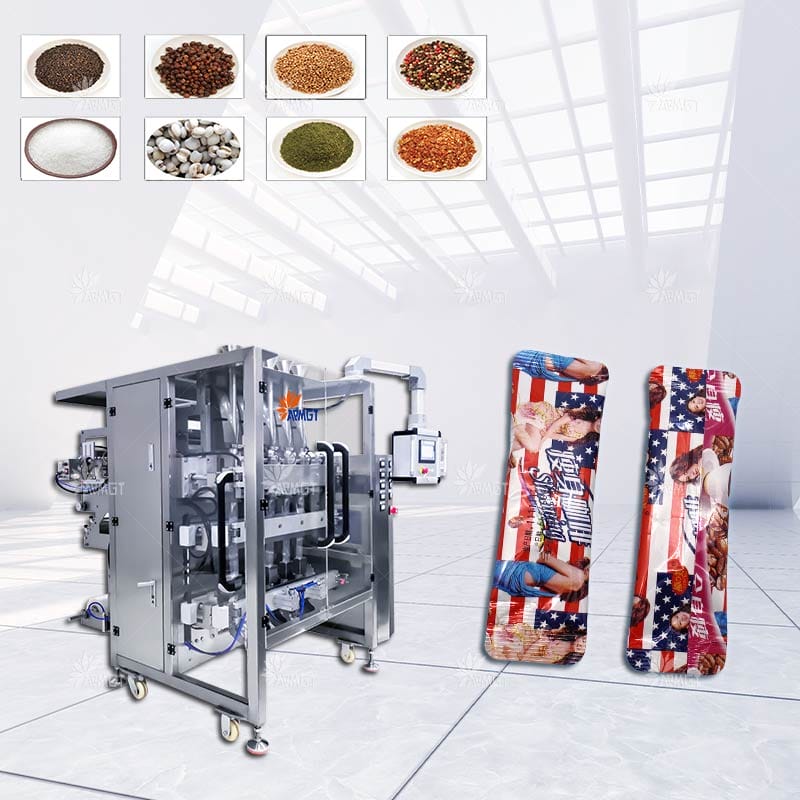

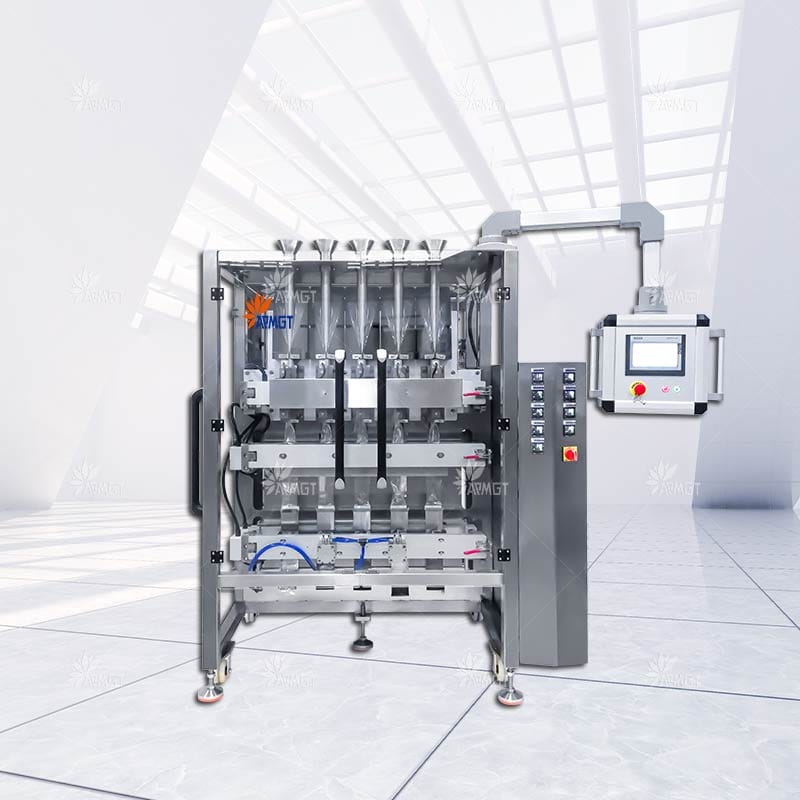

GH840BK multi-lane bag granule packing machine is designed for filling and packing granule products, such as instant coffee, solid beverages, enzyme powder, etc. By acquiring experience, and constantly improving the design of the machine, we achieved optimally simplified and reliable technological solutions that allow us to operate and maintain the equipment easily and to meet the needs of the food, health care, and pharmaceutical industries.

GH840BK Multi Lane Back Sealing Bag Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:17-100mm
Delivery date:30-45 days

GH840BK multi-lane bag granule packing machine is designed for filling and packing granule products, such as instant coffee, solid beverages, enzyme powder, etc. By acquiring experience, and constantly improving the design of the machine, we achieved optimally simplified and reliable technological solutions that allow us to operate and maintain the equipment easily and to meet the needs of the food, health care, and pharmaceutical industries.

  • Multi lanes machine can produce multi lanes bags at same time;
  • The well-established technical concept with a clear structure ensures easy access to machine parts for maintenance. Simple PLC control with easy operating via touch screen panel;
  • Machine main function: automatic split film at the right position, granule measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
  • Fine packaging performance, low noise, clear sealing texture, and strong sealing performance;
  • Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.;
  • Stainless steel contact part and the machine outer shell, high feature for granule running environment;
  • High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at a precise position.

Model

GH840BK

Lane number

4-18

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-100mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 6.5kw

DIM & WT

1700*1600*2300mm; 900kg



    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  • Multi lanes machine can produce multi lanes bags at same time;
  • The well-established technical concept with a clear structure ensures easy access to machine parts for maintenance. Simple PLC control with easy operating via touch screen panel;
  • Machine main function: automatic split film at the right position, granule measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
  • Fine packaging performance, low noise, clear sealing texture, and strong sealing performance;
  • Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.;
  • Stainless steel contact part and the machine outer shell, high feature for granule running environment;
  • High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at a precise position.

Model

GH840BK

Lane number

4-18

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:17-100mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 Back sealing / Stick bag

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 6.5kw

DIM & WT

1700*1600*2300mm; 900kg



    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
