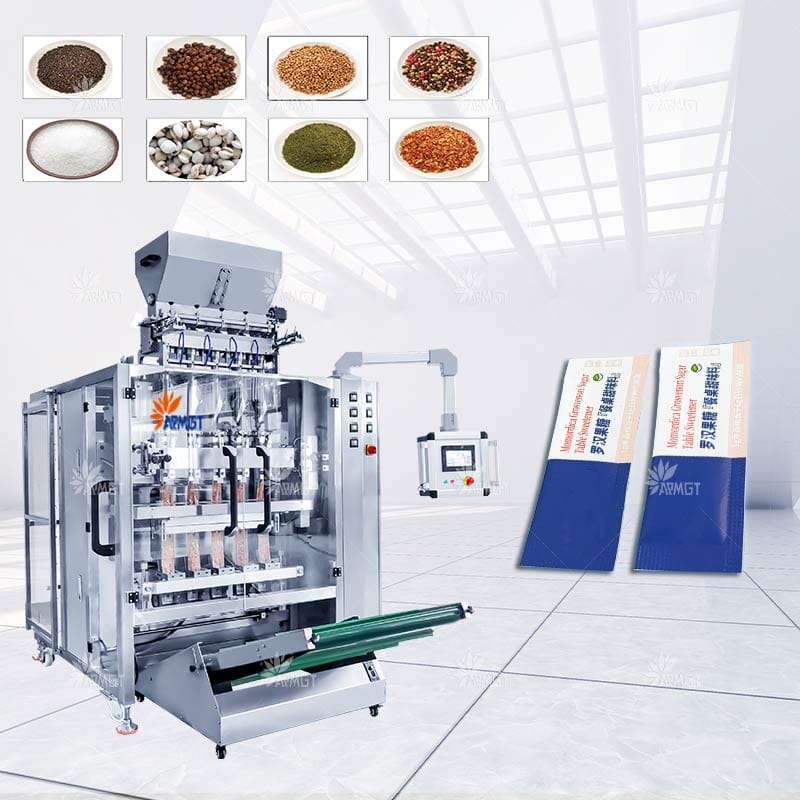

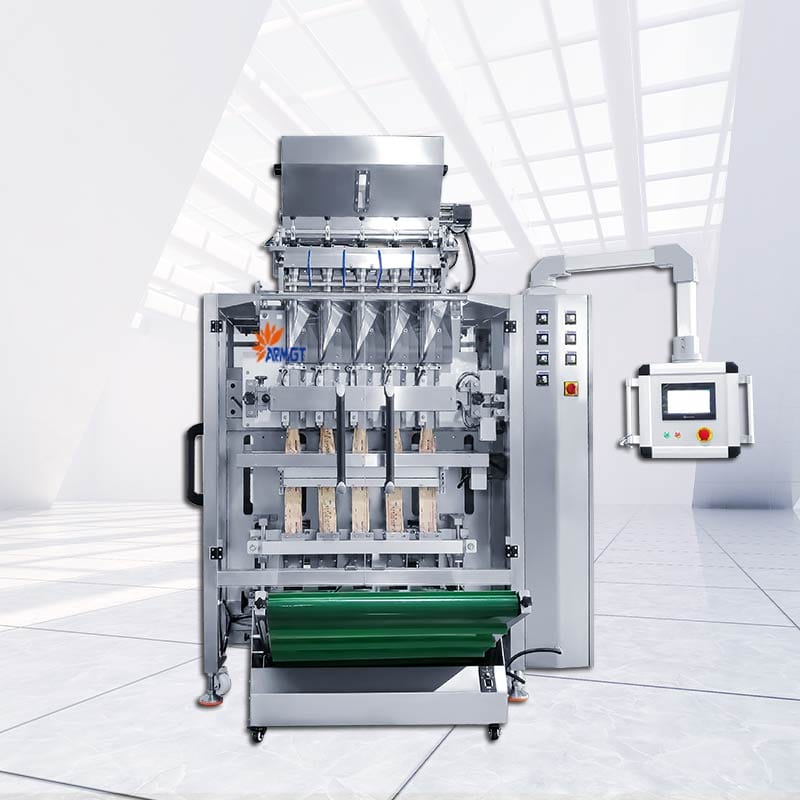

GH840K Multi Lane 3 Side Sealing Sachet Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:25-105mm
Delivery date:30-45 days

GH840K 3 Side Sealing Sachet Granule Packing Machine is easy to clean and can solve sanitary problems in the production process. This machine can be widely used in packing granules such as salt, sugar, coffee, spice, and so on. And it is used for food, beverage, and pharmaceutical industries, etc.

GH840K Multi Lane 3 Side Sealing Sachet Granule Packing Machine APMGT

Speed: Max.50 cycles/min
Bag size:L:50-180mm;W:25-105mm
Delivery date:30-45 days

GH840K 3 Side Sealing Sachet Granule Packing Machine is easy to clean and can solve sanitary problems in the production process. This machine can be widely used in packing granules such as salt, sugar, coffee, spice, and so on. And it is used for food, beverage, and pharmaceutical industries, etc.

  • Divided design, high efficiency, low noise, and running smoothly;
  • The operation is simple, and the packaging weight and other parameters can be set directly on the touch screen
  • Automatical process of measuring, feeding, filling, bag making, printing, sealing, and cutting;
  • With auto alarm protection function, to minimize the loss.
  • Very Stable Technical Performance: PLC control system, photoelectric tracking, high reliability, and intellectualized degree;
  • It adopts high-quality 304 stainless steel material, has excellent appearance quality, resistance to corrosion, heat resistance. Comply with the Drug GMP/Food QS regulatory requirements;
  • Film roll material: plastic film rolls, paper rolls, aluminum film rolls, and other composite materials can be heat sealed;
  • Each heating block is controlled with an individual temperature controller to achieve higher temperature stability.

Model

GH840K

Lane number

4-16

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:25-105mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 3 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 6.5kw

DIM & WT

1700*1600*2300mm; 900kg



    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Divided design, high efficiency, low noise, and running smoothly;
  • The operation is simple, and the packaging weight and other parameters can be set directly on the touch screen
  • Automatical process of measuring, feeding, filling, bag making, printing, sealing, and cutting;
  • With auto alarm protection function, to minimize the loss.
  • Very Stable Technical Performance: PLC control system, photoelectric tracking, high reliability, and intellectualized degree;
  • It adopts high-quality 304 stainless steel material, has excellent appearance quality, resistance to corrosion, heat resistance. Comply with the Drug GMP/Food QS regulatory requirements;
  • Film roll material: plastic film rolls, paper rolls, aluminum film rolls, and other composite materials can be heat sealed;
  • Each heating block is controlled with an individual temperature controller to achieve higher temperature stability.

Model

GH840K

Lane number

4-16

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:50-180mm;W:25-105mm

Film width&thickness

Max.840mm,0.07-0.10mm

Sealing type

 3 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 6.5kw

DIM & WT

1700*1600*2300mm; 900kg



    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
