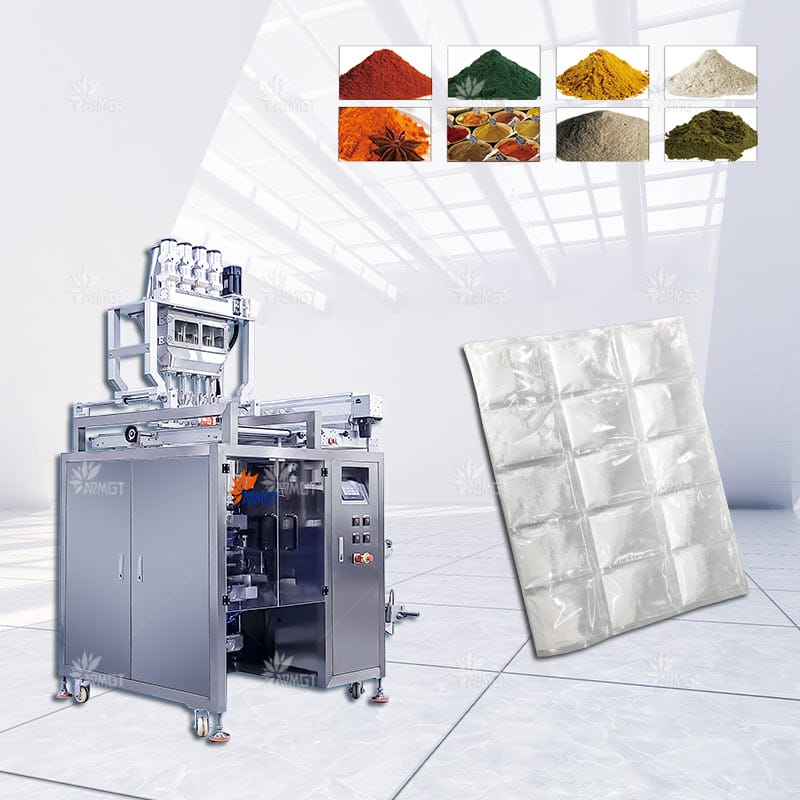

GH960F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:45-120mm;W:50-120mm
Delivery date:30-45 days

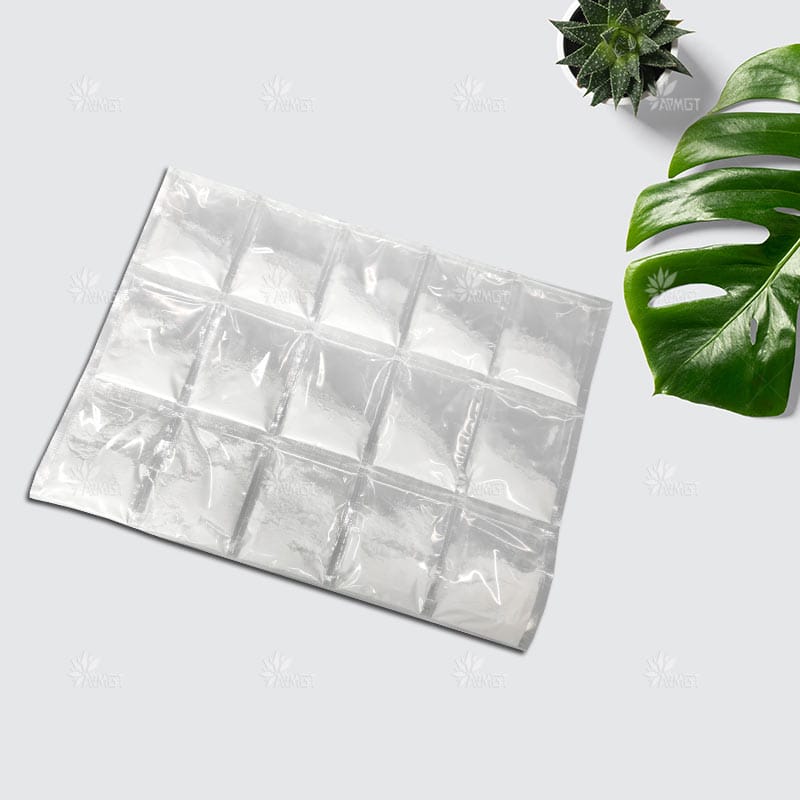

GH960F automatic powder packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc. And it produces 4 side-sealed sachets and the number of lanes depends on the width of the sachet as the maximum roll width (web width) is 960mm.

GH960F Multi Lane 4 Side Sealing Sachet Powder Packing Machine APMGT

Speed:Max.40 cycle/min
Bag size:L:45-120mm;W:50-120mm
Delivery date:30-45 days

GH960F automatic powder packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc. And it produces 4 side-sealed sachets and the number of lanes depends on the width of the sachet as the maximum roll width (web width) is 960mm.

  • Mitsubishi PLC control, customize details according to customer’s requirement;
  • Advanced performance, high strength, low noise, compact structure, smooth operation, and long life;
  • Bag-shaped flat seal firmly exquisite beauty, good packaging quality, and high efficiency.
  • The color touch screen is very sensitive and intelligent and can be used for various debugging of bag making.
  • The man-machine interface touch adjusted by PLC control, the automatic synchronization of the implementing agencies precise positioning. Under the premise of improving packaging speed to ensure the quality of packaging;
  • Adaptable to packaging materials, the machine has an automatic sealing temperature control function and high control accuracy. The machine can be adapted to a variety of domestic and foreign production of packaging films;
  • With automatic correction mechanism to ensure the stability of the film line tension, thereby greatly improving the level and degree of the bag-shaped appearance.

Model

GH960F

Lane number

4-8

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • Mitsubishi PLC control, customize details according to customer’s requirement;
  • Advanced performance, high strength, low noise, compact structure, smooth operation, and long life;
  • Bag-shaped flat seal firmly exquisite beauty, good packaging quality, and high efficiency.
  • The color touch screen is very sensitive and intelligent and can be used for various debugging of bag making.
  • The man-machine interface touch adjusted by PLC control, the automatic synchronization of the implementing agencies precise positioning. Under the premise of improving packaging speed to ensure the quality of packaging;
  • Adaptable to packaging materials, the machine has an automatic sealing temperature control function and high control accuracy. The machine can be adapted to a variety of domestic and foreign production of packaging films;
  • With automatic correction mechanism to ensure the stability of the film line tension, thereby greatly improving the level and degree of the bag-shaped appearance.

Model

GH960F

Lane number

4-8

Filling Method

1.Long auger; 2. Short auger; 3.Short auger with cup

Capacity

Max.40 cycle/min

Bag size

L:45-120mm;W:50-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

4 size sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg



Flour, Starch        Milk/Bean powder      Coffee/Tea powder        All kinds of drugs



    Spice powder         Chemical powder

-Suit to powder product: flour, milk powder, coffee powder, glucose, medicial powder, nutrition powder, chemical powder etc.

  • Chain-bag capability
  • Dust suction and dust removal device
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
