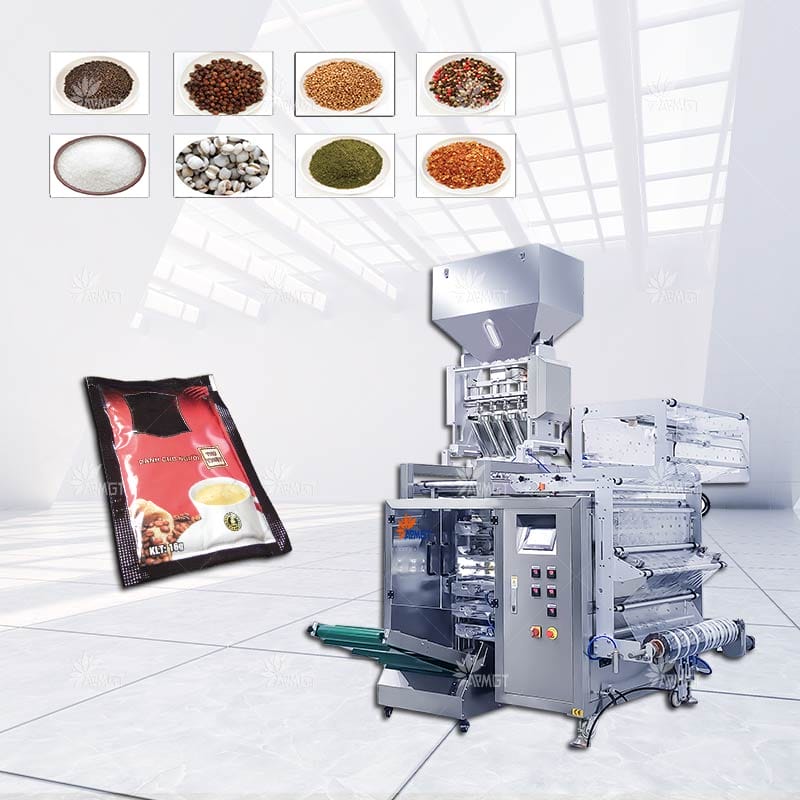

GH960K Multi Lane 4 Side Sealing Sachet Granule Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:40-120mm
Delivery date:30-45 days

The main advantages provided by “GH960K” are accurate metering, low waste, excellent tightness, consistency, and high productivity. it is a multi-line pouch packaging machine driven by a servo drive.

GH960K Multi Lane 4 Side Sealing Sachet Granule Packing Machine APMGT

Speed:Max.50 cycle/min
Bag size:L:45-120mm;W:40-120mm
Delivery date:30-45 days

The main advantages provided by “GH960K” are accurate metering, low waste, excellent tightness, consistency, and high productivity. it is a multi-line pouch packaging machine driven by a servo drive.

  • Movable stainless steel volumetric cups for metering, cup volume can be adjusted. And this measurement parts will measure the weight of each bag automatically;
  • Compact footprint & Low Maintenance;
  • With intelligent photoelectric controller system.
  • The man-machine interface touch adjusted by PLC control, the automatic synchronization of the implementing agencies precise positioning. Under the premise of improving packaging speed to ensure the quality of packaging;
  • Adjust the speed and convenience. Do not need to replace the mold can be adjusted bag length. And longitudinal sealing, transverse sealing, filling material, batch number, cut the dotted line, cross and other actuators can be adjusted by the man-machine interface;
  • Each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality, suit for a variety of packaging materials;
  • The actuators such as vertical seal, horizontal seal, packing, batch number, dashed line, and horizontal seal can all be adjusted through the man-machine interface.

Model

GH960K

Lane number

4-12

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:40-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

 4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  • Movable stainless steel volumetric cups for metering, cup volume can be adjusted. And this measurement parts will measure the weight of each bag automatically;
  • Compact footprint & Low Maintenance;
  • With intelligent photoelectric controller system.
  • The man-machine interface touch adjusted by PLC control, the automatic synchronization of the implementing agencies precise positioning. Under the premise of improving packaging speed to ensure the quality of packaging;
  • Adjust the speed and convenience. Do not need to replace the mold can be adjusted bag length. And longitudinal sealing, transverse sealing, filling material, batch number, cut the dotted line, cross and other actuators can be adjusted by the man-machine interface;
  • Each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality, suit for a variety of packaging materials;
  • The actuators such as vertical seal, horizontal seal, packing, batch number, dashed line, and horizontal seal can all be adjusted through the man-machine interface.

Model

GH960K

Lane number

4-12

Filling Method

1.Volumetric cup; 2. Weigher

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:40-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

 4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg





    Snack Food     Coffee&Tea,Solid beverage          Pet Food                 Candy



  Non-Food Products     Beans & Rice        Spices,Salt&Sugar       All kinds of drugs

-Suit to granule product: Snack Food, Seeds, Nuts, Coffee (granules/ beans), Tea, Sugar, Bakery Products, Candies, Rice, Spices, Pasta, Pet Food etc. instant coffee ,solid beverage, Chinese medicine granule, etc. Other: Non Food. Such as: Medium Nuts, Bolts, Washers, Electrical and Plumbing Parts, Washing Powder, Plastic granules etc.

  • Chain-bag capability
  • Automatic correction
  • No membrane alarm
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Vibrating material shooting device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
