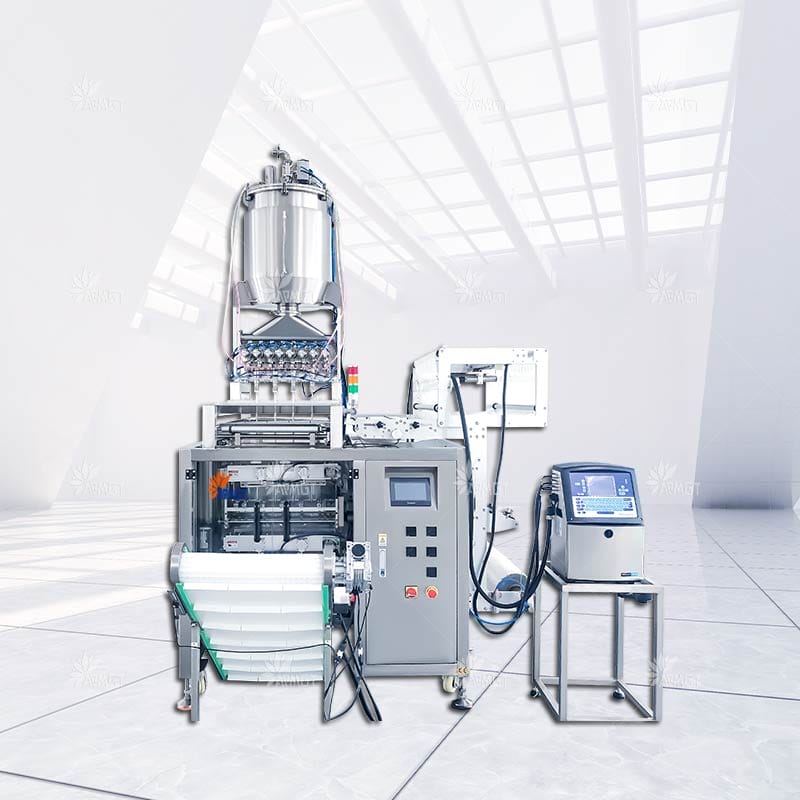

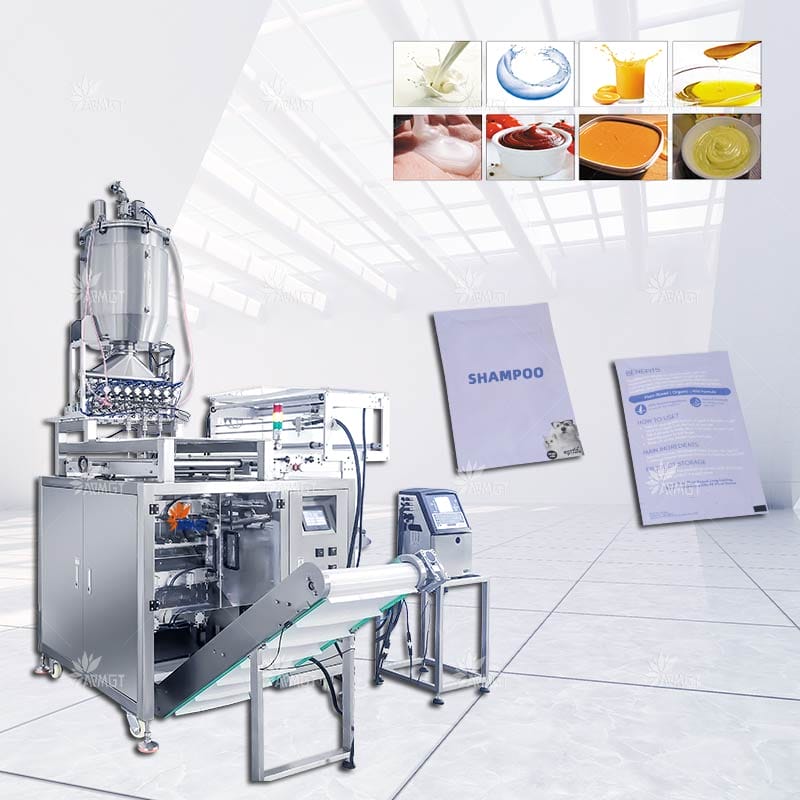

GH960Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed：Max.50 cycle/min
Bag size：L:45-120mm;W:30-120mm
Delivery date：30-45 days

GH960Y packaging machine automatically finishes the process of filling, metering, bag forming, air exhaust, sealing, packing, and date printing. It is used widely for a variety of applications ranging from packing liquid, semi-liquid (shampoo, oil cream, ketchup), etc. And this machine model can be integrated with most fillers. The length of the sachet can be varied up to a maximum of 120mm using the PLC.

Categories: , Tag: , ,
Contact Us
Contact Us

GH960Y Multi Lane 4 Side Sealing Sachet Liquid Packing Machine APMGT

Speed：Max.50 cycle/min
Bag size：L:45-120mm;W:30-120mm
Delivery date：30-45 days

GH960Y packaging machine automatically finishes the process of filling, metering, bag forming, air exhaust, sealing, packing, and date printing. It is used widely for a variety of applications ranging from packing liquid, semi-liquid (shampoo, oil cream, ketchup), etc. And this machine model can be integrated with most fillers. The length of the sachet can be varied up to a maximum of 120mm using the PLC.

Categories: , Tag: , ,
Contact Us
Contact Us
Catalogue
Catalogue
  • It has a color system controller, so that can get the complete trademark design;
  • Suitable for the complex film and tin foil and other packing material.Fine packaging performance, low noise, clear sealing texture, and strong sealing performance;
  • Date printer is available to be equipped on this machine for printing production date on bags;
  • Pump is controlled by a servo system, it can be automatically adjusted when there is an error in the packaging weight to ensure accuracy;
  • Set up the required data(include filling, weighing, bag size, etc) in the visual settings, the control system automatic optimization match with all the programs so that achieve the best packing speed precisely;
  • High speed of accuracy and clean cutting, sealing bags. And stainless steel bag former is for shaping the film into a bag;
  • The machine can detect faults and stop automatically to protect itself.

Model

GH960Y

Lane number

4-16

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  • It has a color system controller, so that can get the complete trademark design;
  • Suitable for the complex film and tin foil and other packing material.Fine packaging performance, low noise, clear sealing texture, and strong sealing performance;
  • Date printer is available to be equipped on this machine for printing production date on bags;
  • Pump is controlled by a servo system, it can be automatically adjusted when there is an error in the packaging weight to ensure accuracy;
  • Set up the required data(include filling, weighing, bag size, etc) in the visual settings, the control system automatic optimization match with all the programs so that achieve the best packing speed precisely;
  • High speed of accuracy and clean cutting, sealing bags. And stainless steel bag former is for shaping the film into a bag;
  • The machine can detect faults and stop automatically to protect itself.

Model

GH960Y

Lane number

4-16

Filling Method

1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump

Capacity

Max.50 cycle/min

Bag size

L:45-120mm;W:30-120mm

Film width&thickness

Max.960mm,0.07-0.1mm

Sealing type

4 side sealing

Cutting type

1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut

Air&Power

0.8Mpa ,0.8m³/min; 5.5kw

DIM & WT

1415*1686*2130mm; 500kg



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
