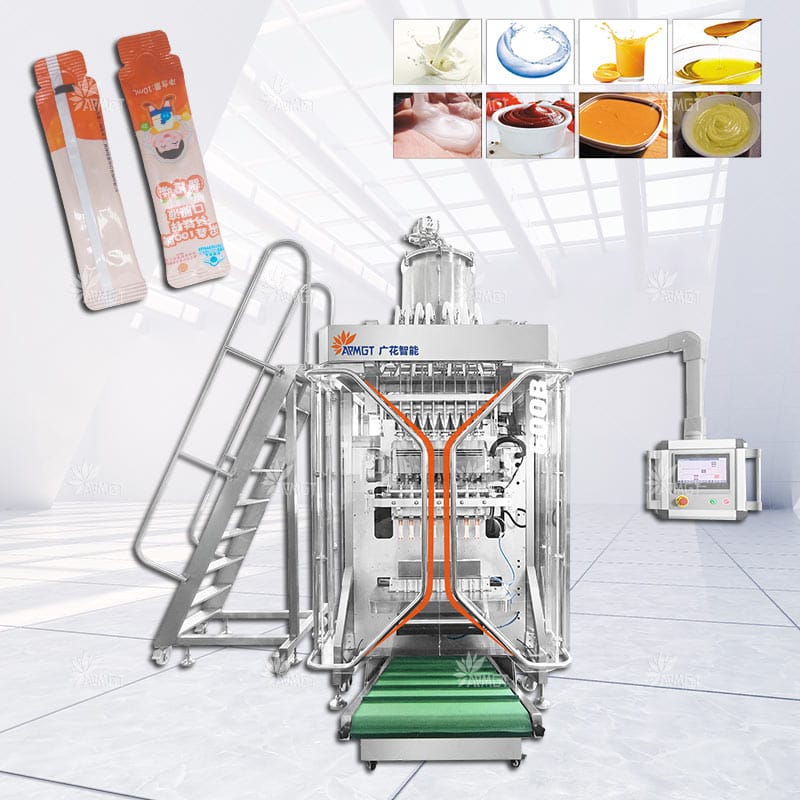

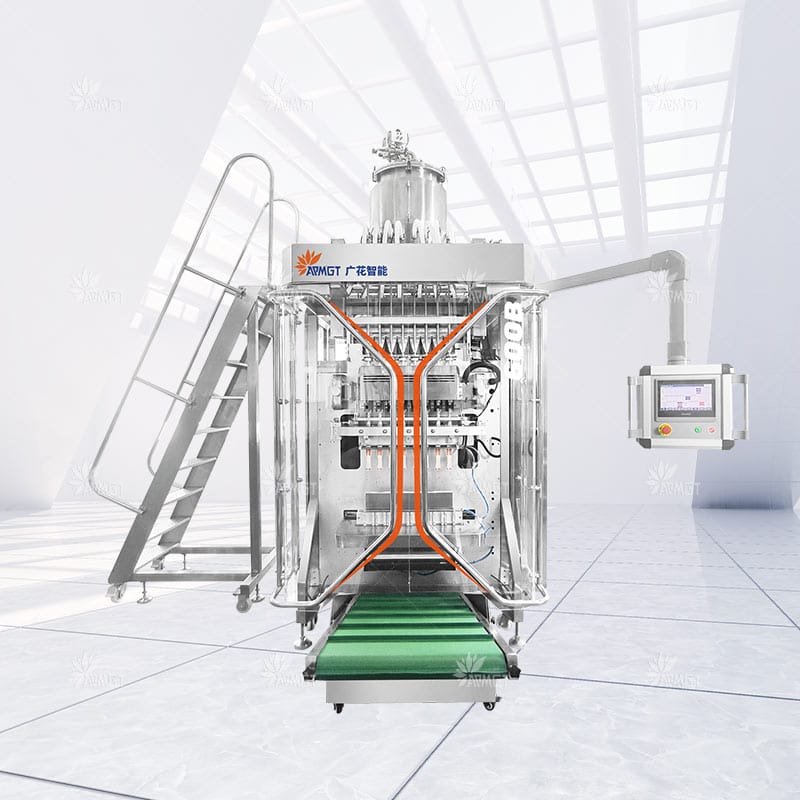

Multi-Lane Stick Pack Packaging Machine for Oral Liquids, Juice, Paste and Other Viscous Products
The GH600BS-Y is a high-speed multi-lane liquid stick pack machine designed for automatic filling, sealing and cutting of liquid and viscous products.
It supports 2–12 lanes and a maximum speed of 80 cycles/min, depending on the product, filling volume and packaging material. The machine can be configured for products such as juice, oral liquids, honey, sauces, oils, gels and other suitable liquid or viscous products.
GH600BS-Y at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.600mm |
|
Lane Number |
2–12 |
|
Max. Speed |
Up to 80 cycles/min |
|
Bag Length & Width |
50–180 mm,17–90 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |
Multi-Lane Stick Pack Packaging Machine for Oral Liquids, Juice, Paste and Other Viscous Products
The GH600BS-Y is a high-speed multi-lane liquid stick pack machine designed for automatic filling, sealing and cutting of liquid and viscous products.
It supports 2–12 lanes and a maximum speed of 80 cycles/min, depending on the product, filling volume and packaging material. The machine can be configured for products such as juice, oral liquids, honey, sauces, oils, gels and other suitable liquid or viscous products.
GH600BS-Y at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.600mm |
|
Lane Number |
2–12 |
|
Max. Speed |
Up to 80 cycles/min |
|
Bag Length & Width |
50–180 mm,17–90 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |
Each core movement is precisely controlled by an independent servo motor, ensuring faster response, superior synchronization, and minimized mechanical wear.
This translates directly to higher production speeds, smoother operation, and significantly reduced downtime during product changeovers. Simply input new parameters on the user-friendly touchscreen, and the machine intelligently adapts, boosting your overall efficiency.
All-bloom understand that liquid products vary greatly. That’s why our multi-lane liquid stick pack machine offers flexible integration with various high-precision dosing systems (e.g., piston pump, peristaltic pump, ceramic pump).
Whether you’re filling thin medicinal solutions or thick ointments, the chosen system guarantees precise, consistent fill volumes for every single stick pack.
Leakage and contamination are major concerns in liquid packaging. Our patented solution combines a “following-type feeding mechanism” with “deep-insertion shut-off valve” technology.
The filling nozzle moves precisely with the film. This virtually eliminates drips, splashes, or product clinging, ensuring a cleaner machine, a tidier production environment, and reduced product waste.
All critical components contacting the product (filling tubes, valves, etc.) are meticulously crafted from high-grade 316 stainless steel, renowned for its superior corrosion resistance and cleanability. The standard CIP (Clean-In-Place) system allows for quick connection to cleaning circuits. Achieve thorough internal cleaning and sanitization without time-consuming disassembly, effortlessly meeting the stringent hygiene standards of pharmaceutical and food industries and safeguarding product integrity.
All critical components contacting the product (filling tubes, valves, etc.) are meticulously crafted from high-grade 316 stainless steel, renowned for its superior corrosion resistance and cleanability. The standard CIP system allows for quick connection to cleaning circuits. Effortlessly meeting the stringent hygiene standards of pharmaceutical and food industries and safeguarding product integrity.
Model | GH600BS-Y |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Piston Pump; Servo Gear Pump; Servo Rotary Pump |
Capacity | Max.80 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L50-180mm;W17-90mm |
Film width&thickness | Max.600mm; 0.07-0.12mm |
Sealing type | Backing Sealing/Stick Pack |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cutting |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |

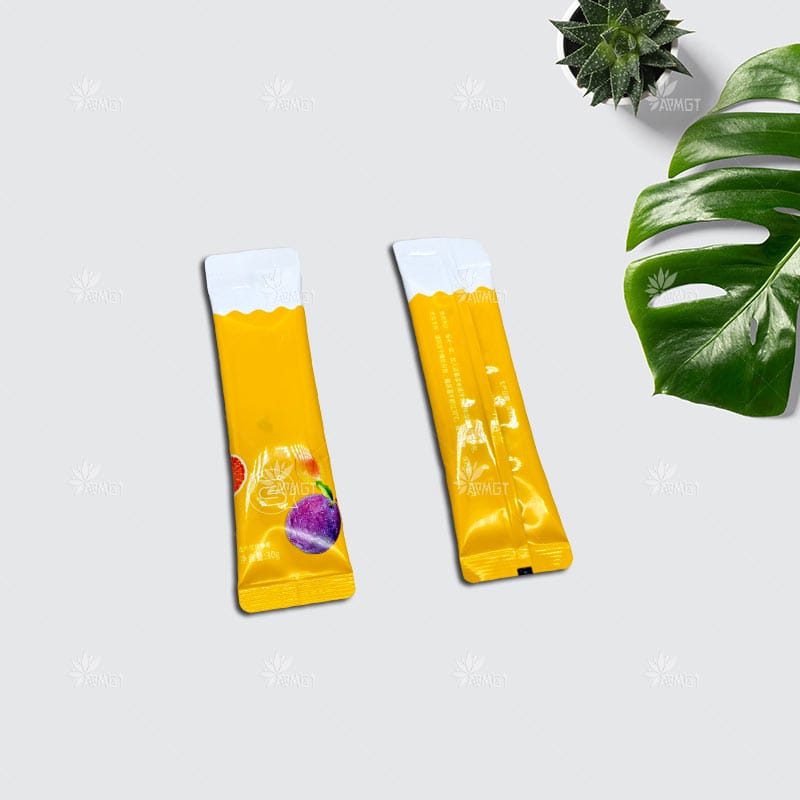

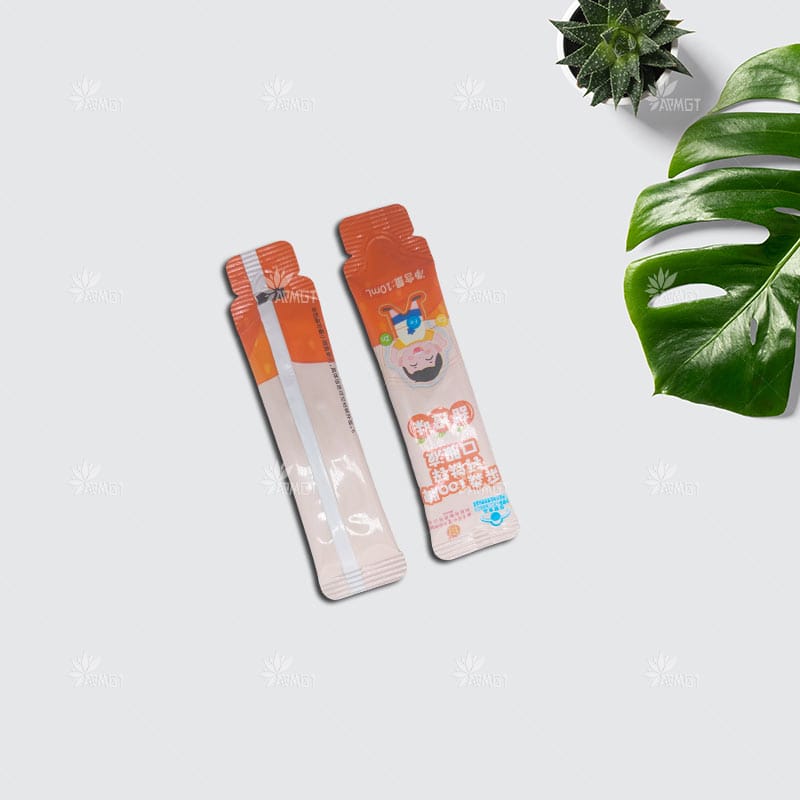

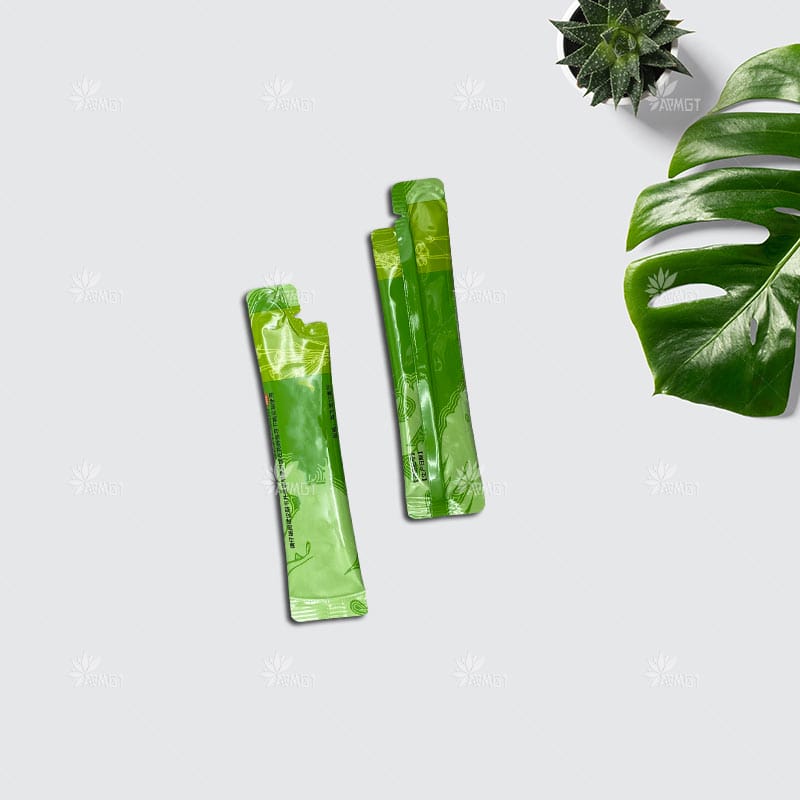

The GH600BS-Y supports multiple back-seal bag styles, including straight cut, rounded-corner, zigzag-cut and special-shaped bags. Different cutting and shaping options are available to match the required package appearance and opening method.
The GH600BS-Y is designed for automatic stick pack packaging of a wide range of liquid and viscous products across food, pharmaceutical and personal care applications.
Pharmaceutical
Cosmetics & Personal Care
Daily ChemicalOptional features can be configured according to product and packaging requirements.
Optional Feature | Function |
Automatic Film Correction | Maintains stable film positioning |
No-Film Alarm | Detects film shortage or interruption |
Light Strip | Improves operation visibility |
UV Sterilization | Optional UV sterilization |
Static Elimination | Reduces static during film feeding |
Vibrating Material Discharge | Improves material discharge |
Tear Notch | Facilitates package opening |
Check Weighing | Single- or multi-lane weight checking |
Not sure which configuration is suitable for your product? Send us your product type, filling volume and target output, and we can recommend the appropriate configuration.
Each core movement is precisely controlled by an independent servo motor, ensuring faster response, superior synchronization, and minimized mechanical wear.
This translates directly to higher production speeds, smoother operation, and significantly reduced downtime during product changeovers. Simply input new parameters on the user-friendly touchscreen, and the machine intelligently adapts, boosting your overall efficiency.
All-bloom understand that liquid products vary greatly. That’s why our multi-lane liquid stick pack machine offers flexible integration with various high-precision dosing systems (e.g., piston pump, peristaltic pump, ceramic pump).
Whether you’re filling thin medicinal solutions or thick ointments, the chosen system guarantees precise, consistent fill volumes for every single stick pack.
Leakage and contamination are major concerns in liquid packaging. Our patented solution combines a “following-type feeding mechanism” with “deep-insertion shut-off valve” technology.
The filling nozzle moves precisely with the film. This virtually eliminates drips, splashes, or product clinging, ensuring a cleaner machine, a tidier production environment, and reduced product waste.
All critical components contacting the product (filling tubes, valves, etc.) are meticulously crafted from high-grade 316 stainless steel, renowned for its superior corrosion resistance and cleanability. The standard CIP (Clean-In-Place) system allows for quick connection to cleaning circuits. Achieve thorough internal cleaning and sanitization without time-consuming disassembly, effortlessly meeting the stringent hygiene standards of pharmaceutical and food industries and safeguarding product integrity.
All critical components contacting the product (filling tubes, valves, etc.) are meticulously crafted from high-grade 316 stainless steel, renowned for its superior corrosion resistance and cleanability. The standard CIP system allows for quick connection to cleaning circuits. Effortlessly meeting the stringent hygiene standards of pharmaceutical and food industries and safeguarding product integrity.
Model | GH600BS-Y |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Piston Pump; Servo Gear Pump; Servo Rotary Pump |
Capacity | Max.80 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc. |
Bag size | L50-180mm;W17-90mm |
Film width&thickness | Max.600mm; 0.07-0.12mm |
Sealing type | Backing Sealing/Stick Pack |
Cutting type | Straight cutting, Zigzag cutting, Round cutting, Die-cutting |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized ) |
The GH600BS-Y supports multiple back-seal bag styles, including straight cut, rounded-corner, zigzag-cut and special-shaped bags. Different cutting and shaping options are available to match the required package appearance and opening method.
The GH600BS-Y is designed for automatic stick pack packaging of a wide range of liquid and viscous products across food, pharmaceutical and personal care applications.
PharmaceuticalCosmetics & Personal CareDaily ChemicalOptional features can be configured according to product and packaging requirements.
Optional Feature | Function |
Automatic Film Correction | Maintains stable film positioning |
No-Film Alarm | Detects film shortage or interruption |
Light Strip | Improves operation visibility |
UV Sterilization | Optional UV sterilization |
Static Elimination | Reduces static during film feeding |
Vibrating Material Discharge | Improves material discharge |
Tear Notch | Facilitates package opening |
Check Weighing | Single- or multi-lane weight checking |
Not sure which configuration is suitable for your product? Send us your product type, filling volume and target output, and we can recommend the appropriate configuration.
