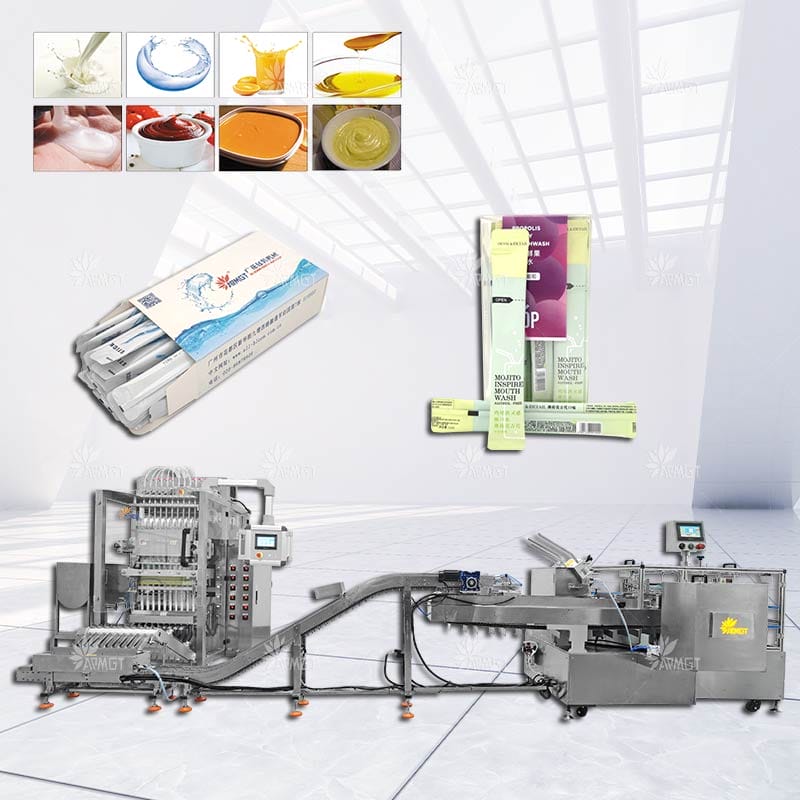

Multi Lane Liquid Packing Machine And Boxing Automatic System

Speed:30-60 Box/min
Box size : L:90-200mm,W:70-150mm,H:20-50mm(Can be Customized)

The liquid packing machine production line is divided into multi lane liquid packing machine, material arrangement device and boxing machine. It integrates light, electricity and gas, and is widely used in the automatic packaging of various boxed liquid products in the industries of medicine, food, health care products and cosmetics.

Multi Lane Liquid Packing Machine And Boxing Automatic System

Speed:30-60 Box/min
Box size : L:90-200mm,W:70-150mm,H:20-50mm(Can be Customized)

The liquid packing machine production line is divided into multi lane liquid packing machine, material arrangement device and boxing machine. It integrates light, electricity and gas, and is widely used in the automatic packaging of various boxed liquid products in the industries of medicine, food, health care products and cosmetics.

  • We will customize the design of the product conveying method according to the customer’s product to achieve the best feeding and packing effect.
  • Machine electrical components can be customized and upgraded according to customer needs.
  • The boxing machineintegrates unpacking, packing, folding and sealing, with compact and reasonable design, simple operation and convenient maintenance.
  • High degree of automation: PLC programmable control system, man-machine interface displays parameters such as packing speed, quantity, automatic alarm for lack of boxes/bags, no product unpacking, failure reasons and other parameters.
  • The transmission and friction parts are strictly implemented in accordance with the standards, with less wear and tear in the later period, reducing the replacement of parts
  • The normally dismantling structure is easy to disassemble and connect, ensuring hygienic and convenient handling when changing shifts or changing products

Model

GH200ZH

Capacity

30-60 boxes/min

 (Depend on the box size, product type and box thickness)

Box size

L:90-200mm;W:70-150mm; H:20-50mm (Can be customized)

Paper type

250-400g/² (Boxes need come with pre-folded over)

Box type

Gusseted tongue type; Glue spray type

Count way

Fixed number type; Numerable type; Manipulator counting

Boxing way

Ordely type; Unorderly type

Air & Powder

0.5-0.8Mpa; 0.3m³/min; 220V 50/60HZ; 2.0KW

Work flow

Box open-Bag packing -Check weigher- Counting – Boxing -Fold ears- Fold page – Gusseted tongue/ Glue spray – Finish



Shampoo,Conitioner, Hair mask     Ketchup,Sauce, Oil



Skin care products,Mouthwash              Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
  • We will customize the design of the product conveying method according to the customer’s product to achieve the best feeding and packing effect.
  • Machine electrical components can be customized and upgraded according to customer needs.
  • The boxing machineintegrates unpacking, packing, folding and sealing, with compact and reasonable design, simple operation and convenient maintenance.
  • High degree of automation: PLC programmable control system, man-machine interface displays parameters such as packing speed, quantity, automatic alarm for lack of boxes/bags, no product unpacking, failure reasons and other parameters.
  • The transmission and friction parts are strictly implemented in accordance with the standards, with less wear and tear in the later period, reducing the replacement of parts
  • The normally dismantling structure is easy to disassemble and connect, ensuring hygienic and convenient handling when changing shifts or changing products

Model

GH200ZH

Capacity

30-60 boxes/min

 (Depend on the box size, product type and box thickness)

Box size

L:90-200mm;W:70-150mm; H:20-50mm (Can be customized)

Paper type

250-400g/² (Boxes need come with pre-folded over)

Box type

Gusseted tongue type; Glue spray type

Count way

Fixed number type; Numerable type; Manipulator counting

Boxing way

Ordely type; Unorderly type

Air & Powder

0.5-0.8Mpa; 0.3m³/min; 220V 50/60HZ; 2.0KW

Work flow

Box open-Bag packing -Check weigher- Counting – Boxing -Fold ears- Fold page – Gusseted tongue/ Glue spray – Finish



Shampoo,Conditioner, Hair mask     Ketchup,Sauce, Oil



          Skin care products,Mouthwash             Drink,Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash etc.

  • Chain-bag capability
  • Heating, stirring and heat preservation device
  • Automatic correction
  • No membrane alarm
  • Automatic cleaning and drainage function
  • Light strip
  • Bag opening device
  • Ultraviolet sterilization device
  • Static elimination device
  • Tear  notch
  • Laser coding machine, inkjet printer
  • Integration with a variety of fillers, printers, metal detectors, label applicators, checkweigher and turntable
  • In-feed and take-away conveyors
  •
