GH840S-Y-3 side sealing sachet paste packing machine

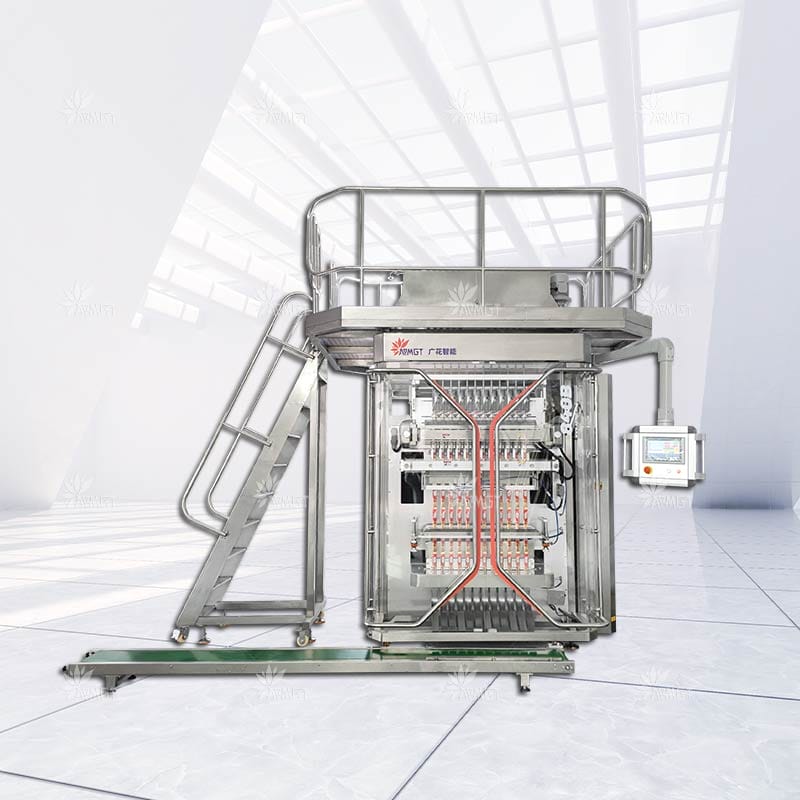

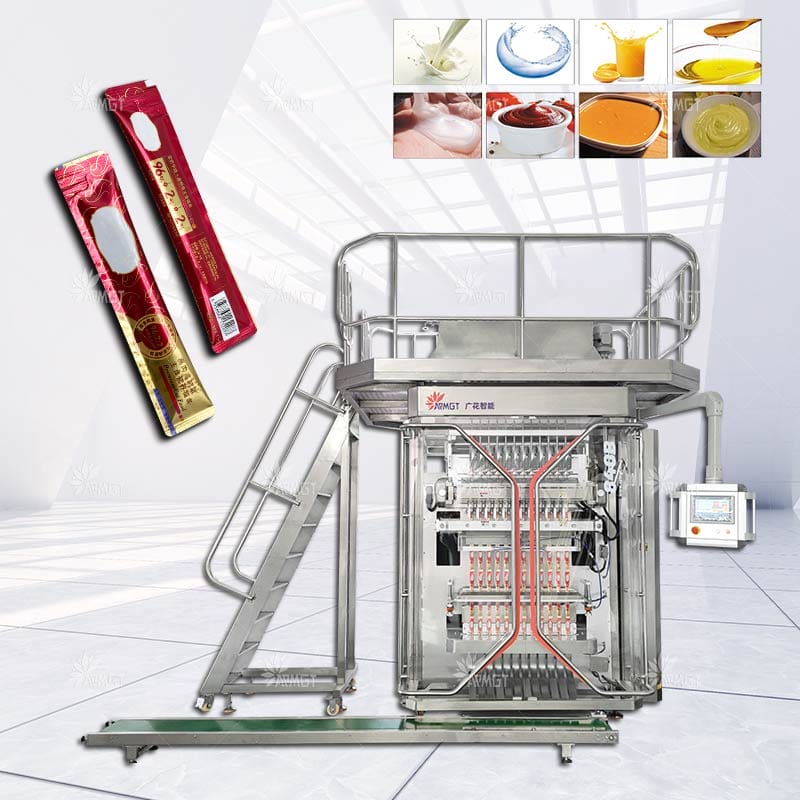

Vertical Juice Honey Paste Sachet Packing Machine With Multi-Function Gh840S-Y

Capacity： Max.80 cycles/min

Bag size：L50-180mm；W25-95mm

The GH840S-Y series vertical sachet packaging machine is engineered for liquid and semi-solid products, addressing critical needs in the pharmaceuticals, food, and cosmetics industries.

It can handle diverse materials from low-viscosity fluids to particle-containing pastes. Customizable configurations through custom packaging equipment solutions empower businesses with adjustable pouch formats, temperature controls, and expansion modules.

Vertical Juice Honey Paste Sachet Packing Machine With Multi-Function Gh840S-Y

Capacity： Max.80 cycles/min

Bag size：L50-180mm；W25-95mm

The GH840S-Y series vertical sachet packaging machine is engineered for liquid and semi-solid products, addressing critical needs in the pharmaceuticals, food, and cosmetics industries.

Multi-Lane Coordination

The system integrates 8–12 independent working lanes operating in parallel, delivering significantly higher efficiency than single-lane packing machines to meet large-scale production demands.
An intelligent alignment system ensures precise positioning of packaging film across all lanes after multi-column splitting, guaranteeing consistent stick bag alignment and uniformity.

Flexible Production Line Integration

Upstream/Downstream Compatibility:

Upstream: Compatible with automated feeding systems (e.g., liquid feeding pump).
Downstream: Seamlessly connects to Multi-Lane Check Weigher → Automatic Bag Sorting Machine → Automatic Boxing Machine → Check Weigher → Automatic Container Loader → Palletizer.

Adaptive Metering Solutions

Multiple precision pump configurations for diverse material properties:

Piston Pumps: Ideal for high-viscosity pastes (herbal extracts, skincare serums, tomato paste), ensuring residue-free extrusion.
Gear Pumps: Optimized for low-to-medium viscosity liquids (oral solutions, functional beverages) with linear flow control.
Rotary Pumps: Engineered for liquids with suspended particles (pulp juices, granular pharmaceuticals), minimizing product damage.
Ceramic Pumps: Designed for abrasive, particle-laden sauces (chili pastes), combining corrosion resistance with dosing accuracy.

Precision Sealing & Cutting

Sealing Quality: Multi-zone temperature gradient control adapts to PET/AL composite films (0.07–0.12mm thickness), ensuring wrinkle-free seams.
Cutting System: Servo-driven independent blades deliver smooth, burr-free edges.

Non-Stick Sealing Innovation

PTFE (Teflon™)-Coated Horizontal Sealing Part: Prevents adhesion of sticky substances (honey, syrups, collagen liquids) during sealing, maintaining clean, residue-free surfaces.
Enhanced Durability: The coating reduces direct metal-to-material friction, extending tooling service life

Model	GH840S-Y
Lane number	2-12 lanes (can be customized according to needs)
Filling Method	Servo Piston Pump; Servo Gear Pump; Servo Rotary Pump
Capacity	Max.80 cycles/min (Depending on factors such as product characteristics, filling volume, packaging bag characteristics, etc.
Bag size	L50-180mm;W25-95mm
Film width&thickness	Max.840mm; 0.07-0.12mm
Sealing type	3 Side Sealing
Cutting type	Straight cutting, Zigzag cutting, Round cutting, Die-cutting (can be customized)
Notching Type	Doubles; V-shaped; Dot-line; Special-shaped openings (can be customized)
Printing	Embossed; Thermal transfer printer; Ribbon printer; Lnk Jet Printer; Laser Printer (can be customized )

Shampoo, Conditioner, Hair mask Ketchup, Sauce, Oil

Skincare products, Mouthwash Drink, Jelly

-Suit to liquid or paste product: shampoo, mask mud, cream, ketchup, jelly, sauce, oil, energy drink, mouthwash, etc.

Automatic correction
No membrane alarm
Light strip
Ultraviolet sterilization device
Static elimination device
Vibrating material shooting device
Tear notch

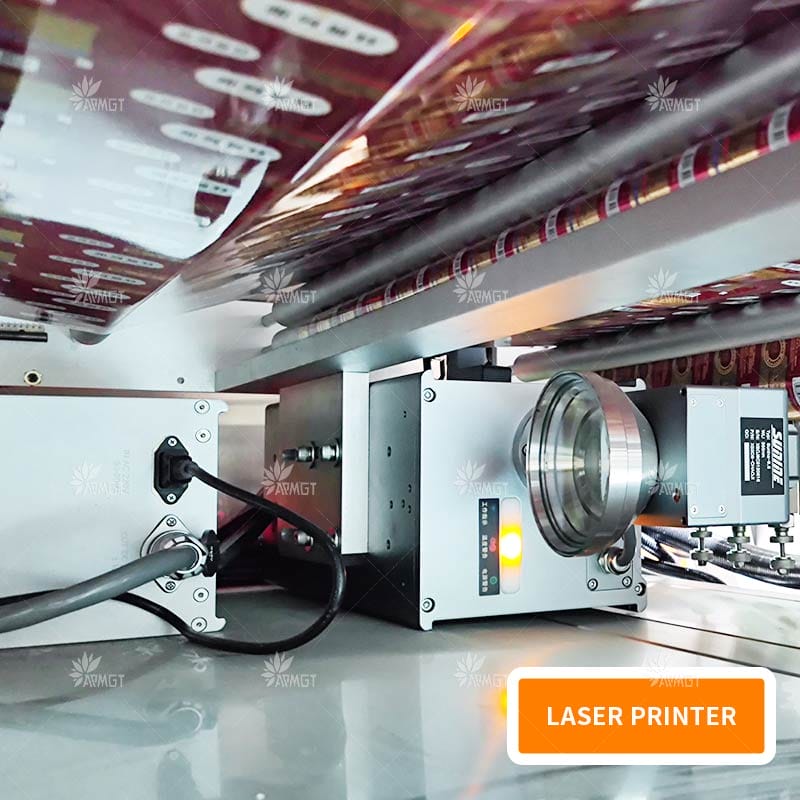

Laser coding machine, inkjet printer
