Back-Seal Sachet Packaging for Protein Powder, Coffee, Milk Powder & Nutritional Powders

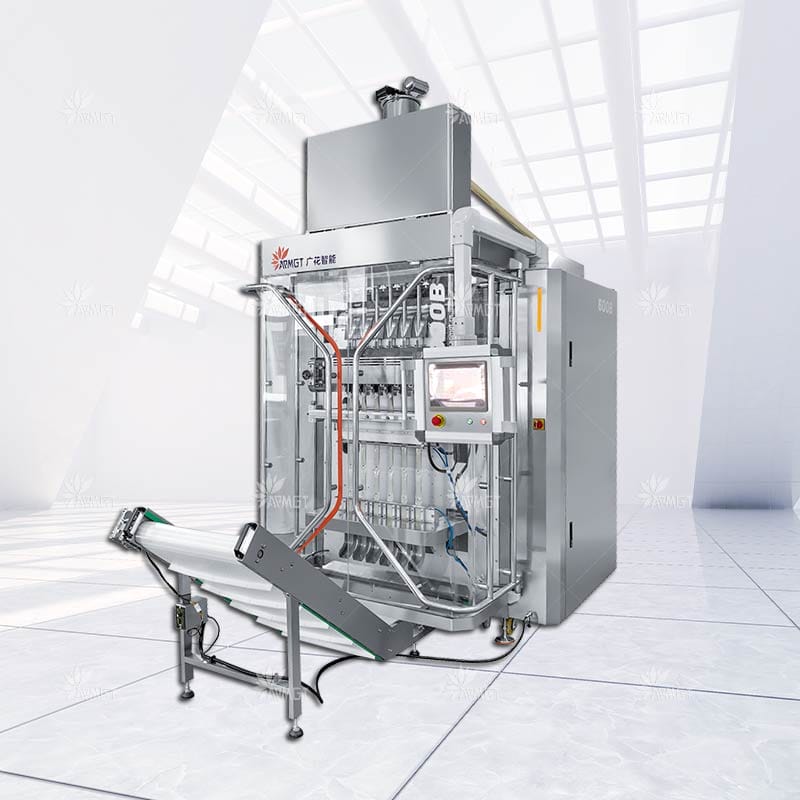

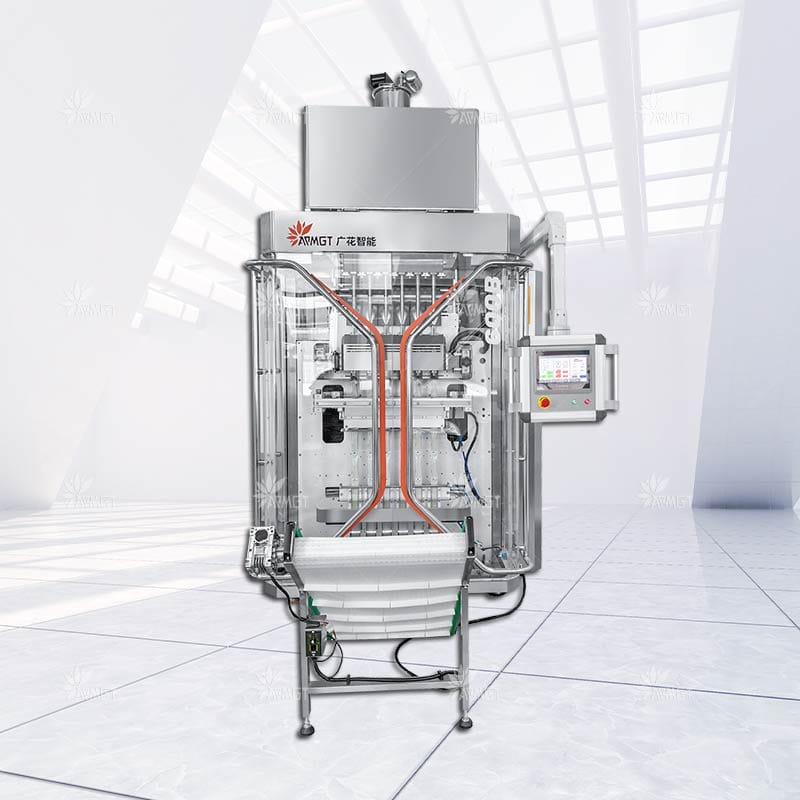

The GH600BS-F is a multi-lane powder stick pack machine designed for protein powder, coffee, milk powder, spices, nutritional powders, and other free-flowing powders. Flexible auger dosing adapts to different powder characteristics, while servo-driven film handling and back sealing deliver stable, consistent stick packs for efficient production.
GH600BS-F at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.600mm |
|
Lane Number |
2–12 |
|
Max. Speed |
Up to 80 cycles/min |
|
Bag Length & Width |
50–180 mm,17–90 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |
Back-Seal Sachet Packaging for Protein Powder, Coffee, Milk Powder & Nutritional Powders
The GH600BS-F is a multi-lane powder stick pack machine designed for protein powder, coffee, milk powder, spices, nutritional powders, and other free-flowing powders. Flexible auger dosing adapts to different powder characteristics, while servo-driven film handling and back sealing deliver stable, consistent stick packs for efficient production.
GH600BS-F at a Glance
|
Key Parameter |
Specification |
|
Film Width |
Max.600mm |
|
Lane Number |
2–12 |
|
Max. Speed |
Up to 80 cycles/min |
|
Bag Length & Width |
50–180 mm,17–90 mm |
|
Cutting Options |
Straight / Zigzag / Round / Die Cutting |
The well-known PLC and servo systems enable automatic mark tracking and PID temperature control . Direct servo-driven sealing and film pulling reduce mechanical wear, enhancing speed stability by 40%, ideal for sterile packaging of sensitive ingredients like probiotic freeze-dried powder.
Upgrade with vacuum loader (anti-contamination), printer (batch tracing), or dust collector, compliant with CE. The Vertical Stick Powder Packaging Machine can be integrated with subsequent automatic bag sorting and boxing machines to create an automated packaging and boxing production line. Additionally, it can be customized for cartooning, sealing, and palletizing, enabling the establishment of a comprehensive automatic packaging production line.
Custom long/short augers adapt to powder properties, covering 0.1g-100g dosing (specific customization is required). Anti-caking vibration modules boost protein powder filling efficiency by 25% with ≤0.3% error rate.
Patented vertical sealing with Teflon-coated jaws delivers wrinkle-free, residue-resistant seals. Servo-driven heat sealing with real-time temperature compensation ensures consistency across films.
In case of an anomaly, the machine automatically stops and triggers an alarm, with a high-definition touchscreen showing real-time status and pinpointing the issue. Multi-language support (CN/EN/OTHER) enhances global usability.
Model | GH600BS-F |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Long auger/ Servo Short auger |
Capacity | Max.80 cycle/min (Depend on factors such as product characteristics, filling volume, packaging bag characteristics, etc) |
Bag size | L50-180mm;W17-90mm |
Film width&thickness | Max.600mm; 0.07-0.12mm |
Sealing type | Back sealing/Stick pack |
Cutting type | Straight cutting; Zigzag cutting; Round cutting; Die-cut |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk jet printer; Laser Printer (can be customized ) |

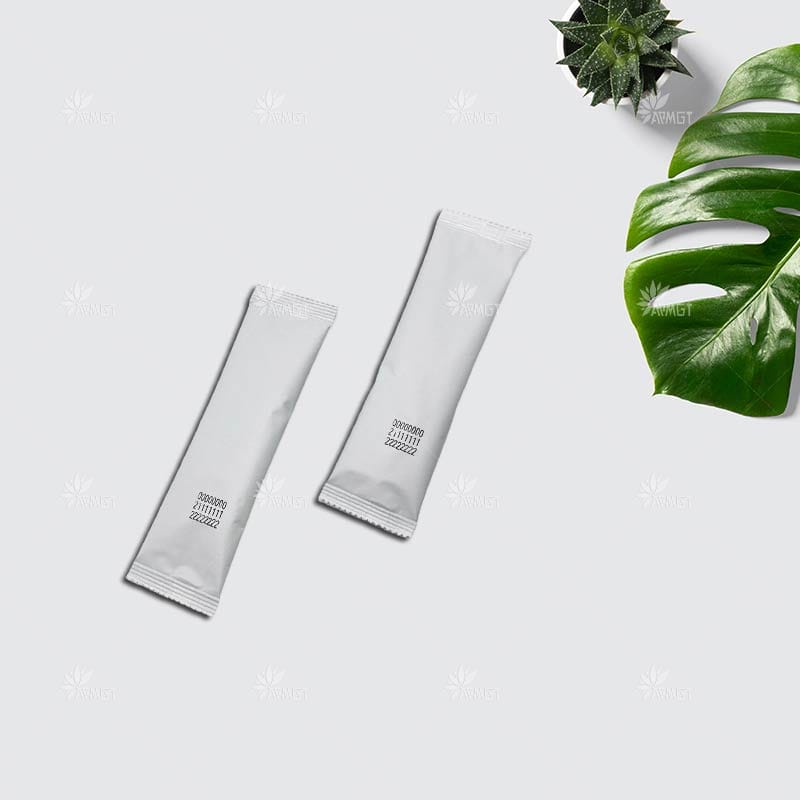

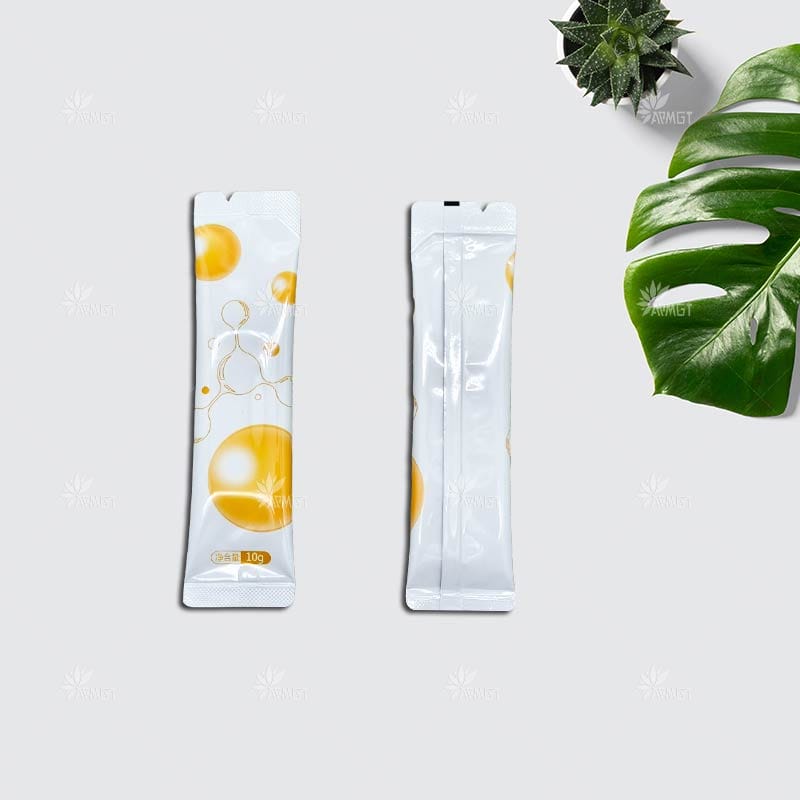

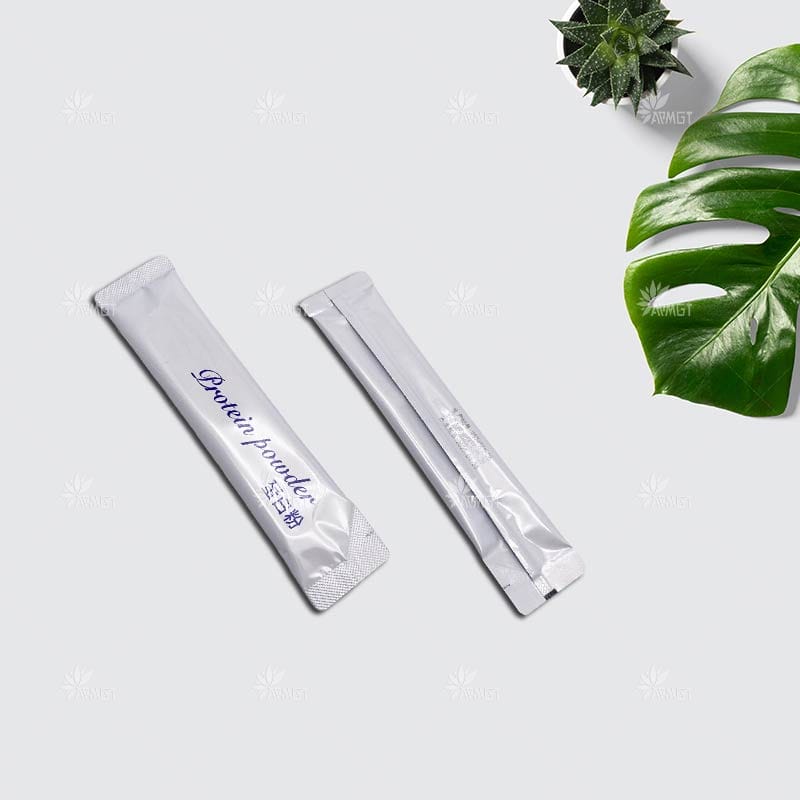

The GH600BS-F produces back-seal stick packs with flexible cutting options for different product, opening, and presentation requirements.

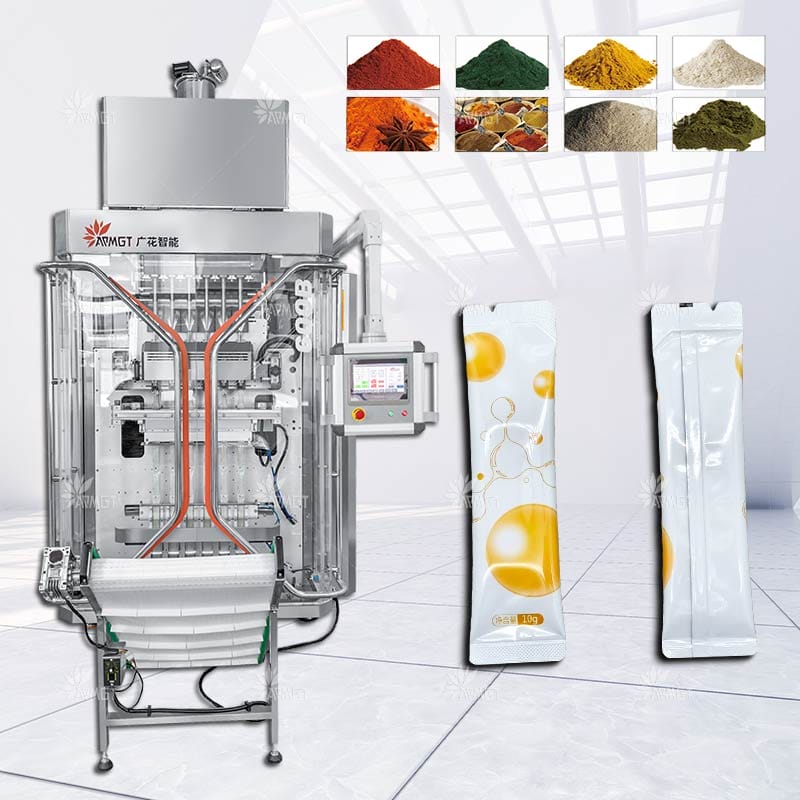

The GH600BS-F is suitable for a wide range of free-flowing powders across food, beverage, pharmaceutical, nutraceutical, cosmetics, pet care, and non-food applications.
Dairy & Plant-Based Nutrition
Nutrition & Health
Food & Beverage
Spices & Seasonings
Pharmaceutical & Herbal
Pet Food & Supplements
Cosmetics & Personal Care
Chemical & Non-FoodThe GH600BS-F can be configured with optional powder feeding, anti-dusting, dosing, inspection, coding, and downstream packaging equipment to suit different powder characteristics and production requirements.
Optional Feature | Function |
Dust Collection System | Helps control airborne powder during feeding and filling |
Boxing Machine | Automatically loads sachets into boxes |
Z-Type Bucket Elevator | Lifts and continuously feeds granules to the weighing |
Premade Pouch Packing Machine | Loads sachets into pre-made outer pouches |
Multi-Lane Check Weigher | Checks the weight of finished sachets |
Metal Detector | Detects metal contamination in finished bags |
Stainless Steel Working Platform & Safety Stairs | Provides convenient and safe access for machine operation, cleaning, inspection, and maintenance |
Vacuum Feeder | Transfers powder from the storage or supply system to the packaging machine while helping reduce manual handling and powder exposur |
The well-known PLC and servo systems enable automatic mark tracking and PID temperature control . Direct servo-driven sealing and film pulling reduce mechanical wear, enhancing speed stability by 40%, ideal for sterile packaging of sensitive ingredients like probiotic freeze-dried powder.
Upgrade with vacuum loader (anti-contamination), printer (batch tracing), or dust collector, compliant with CE. The Vertical Stick Powder Packaging Machine can be integrated with subsequent automatic bag sorting and boxing machines to create an automated packaging and boxing production line. Additionally, it can be customized for cartooning, sealing, and palletizing, enabling the establishment of a comprehensive automatic packaging production line.
Custom long/short augers adapt to powder properties, covering 0.1g-100g dosing (specific customization is required). Anti-caking vibration modules boost protein powder filling efficiency by 25% with ≤0.3% error rate.
Patented vertical sealing with Teflon-coated jaws delivers wrinkle-free, residue-resistant seals. Servo-driven heat sealing with real-time temperature compensation ensures consistency across films.
In case of an anomaly, the machine automatically stops and triggers an alarm, with a high-definition touchscreen showing real-time status and pinpointing the issue. Multi-language support (CN/EN/OTHER) enhances global usability.
Model | GH600BS-F |
Lane number | 2-12 lanes (can be customized according to needs) |
Filling Method | Servo Long auger/ Servo Short auger |
Capacity | Max.80 cycle/min (Depend on factors such as product characteristics, filling volume, packaging bag characteristics, etc) |
Bag size | L50-180mm;W17-90mm |
Film width&thickness | Max.600mm; 0.07-0.12mm |
Sealing type | Back sealing/Stick pack |
Cutting type | Straight cutting; Zigzag cutting; Round cutting; Die-cut |
Notching Type | Doubles; V-shaped; Dot-line; Special-shaped openings |
Printing | Embossed; Thermal transfer printer; Ribbon printer; Lnk jet printer; Laser Printer (can be customized ) |
The GH600BS-F produces back-seal stick packs with flexible cutting options for different product, opening, and presentation requirements.
The GH600BS-F is suitable for a wide range of free-flowing powders across food, beverage, pharmaceutical, nutraceutical, cosmetics, pet care, and non-food applications.
Dairy & Plant-Based NutritionNutrition & Health Food & Beverage
Spices & Seasonings
Pharmaceutical & Herbal
Pet Food & SupplementsCosmetics & Personal Care
Chemical & Non-FoodThe GH600BS-F can be configured with optional powder feeding, anti-dusting, dosing, inspection, coding, and downstream packaging equipment to suit different powder characteristics and production requirements.
Optional Feature | Function |
Dust Collection System | Helps control airborne powder during feeding and filling |
Boxing Machine | Automatically loads sachets into boxes |
Z-Type Bucket Elevator | Lifts and continuously feeds granules to the weighing |
Premade Pouch Packing Machine | Loads sachets into pre-made outer pouches |
Multi-Lane Check Weigher | Checks the weight of finished sachets |
Metal Detector | Detects metal contamination in finished bags |
Stainless Steel Working Platform & Safety Stairs | Provides convenient and safe access for machine operation, cleaning, inspection, and maintenance |
Vacuum Feeder | Transfers powder from the storage or supply system to the packaging machine while helping reduce manual handling and powder exposur |
